9340630
Official DistributorBy Rittal
SKU
RIT9340630
Weight
0.32 kg

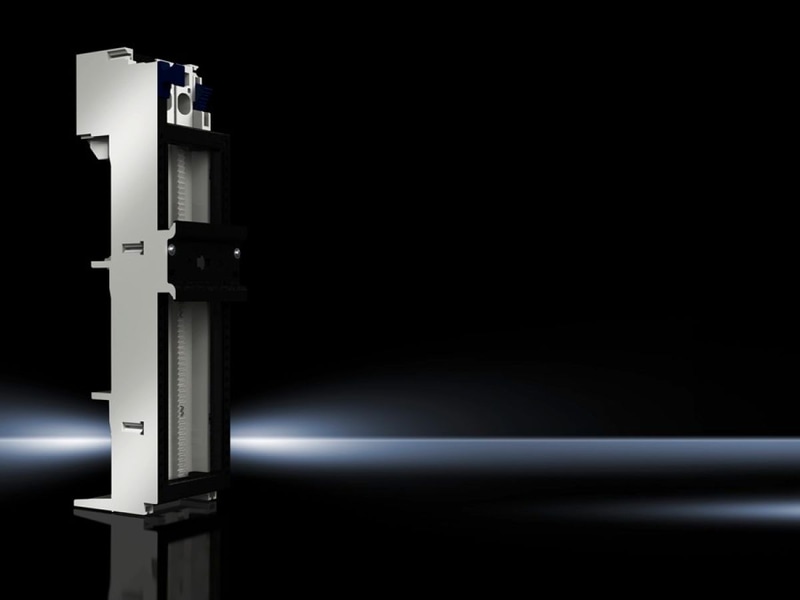

SV OM adaptor, 65 A, 690 V, 3-pole, tension spring clamp 2,5-16 mm², WH: 55x208 mm, support frame, support rail TS 55E
Technical Specifications
Dimensions
| Width | 55 mm |
| Height | 208 mm |
Suitable for busbars
| with cross-section height | 5, 10 mm |
| Material | Polyamide Fire protection corresponding to UL 94-V0 |
| Color | Chassis: RAL 7035 |
| Rated current max. | 65 A |
| Rated operating voltage | 690 V, 3~ |
| For bar systems with center-to-center spacing | 60 mm |
| Support rail type | TS 55E |
| Number of Poles | 3-pole |
| Note on Model No. | According to a heat dissipation test to IEC 61 439-1, a current carrying capacity of up to 80 A is supported |
| Connection for round conductor cross-sections | 2.5 ‐ 16 mm² |
| Support rails Qty/height | 1 / 10 mm |
| Support frame (W x H) | 55 mm x 170 mm |
| Weight/packaging unit | 0.32 kg |
| Copper weight (kg per piece) | 0.059 |
| Customs tariff number | 85369095 |
| EAN | 4028177502666 |
| ETIM 7.0 | EC001531 |
| ECLASS 8.0 | 27370304 |
Why Proax for Rittal 9340630?
Proax is an authorized distributor of Rittal 9340630 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
