9340350
Official DistributorBy Rittal
SKU
RIT9340350
Weight
0.3 kg

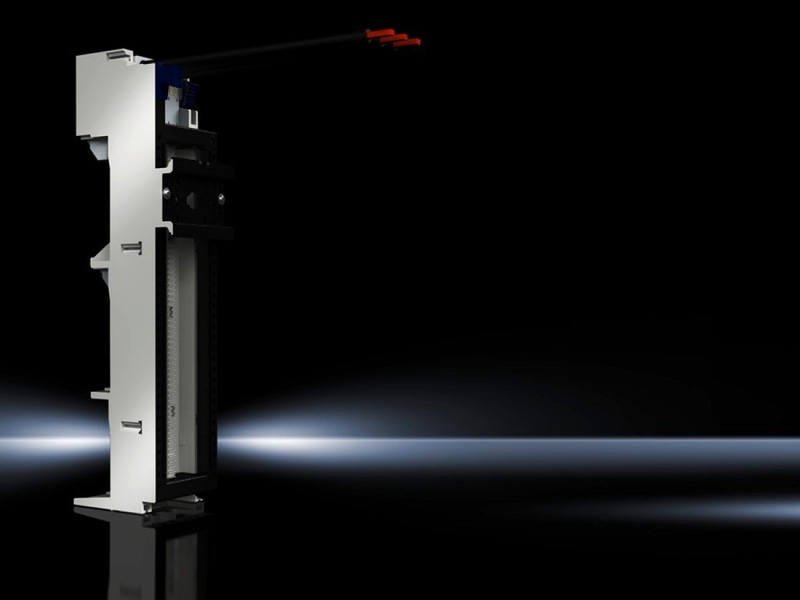

SV OM adaptor, 32 A, 690 V, 3-pole, connection cable AWG 10, WH: 45x208 mm, support frame, support rail TS 45C
Technical Specifications
Dimensions
| Width | 45 mm |
| Height | 208 mm |
Suitable for busbars
| with cross-section height | 5, 10 mm |
| Material | Polyamide Fire protection corresponding to UL 94-V0 |
| Color | Chassis: RAL 7035 |
| Connection cables (AWG) | AWG 10 |
| Rated current max. | 32 A |
| Rated operating voltage | 690 V, 3~ |
| For bar systems with center-to-center spacing | 60 mm |
| Length of connection cable | 130 mm |
| Support rail type | TS 45C |
| Note | The technical data may vary for UL applications. |
| Number of Poles | 3-pole |
| Support rails Qty/height | 1 / 10 mm |
| Support frame (W x H) | 45 mm x 170 mm |
| Weight/packaging unit | 0.3 kg |
| Copper weight (kg per piece) | 0.074 |
| Customs tariff number | 85369095 |
| EAN | 4028177525559 |
| ETIM 7.0 | EC001531 |
| ECLASS 8.0 | 27370304 |
Why Proax for Rittal 9340350?
Proax is an authorized distributor of Rittal 9340350 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
