9340260
Official DistributorBy Rittal
SKU
RIT9340260
Weight
0.22 kg

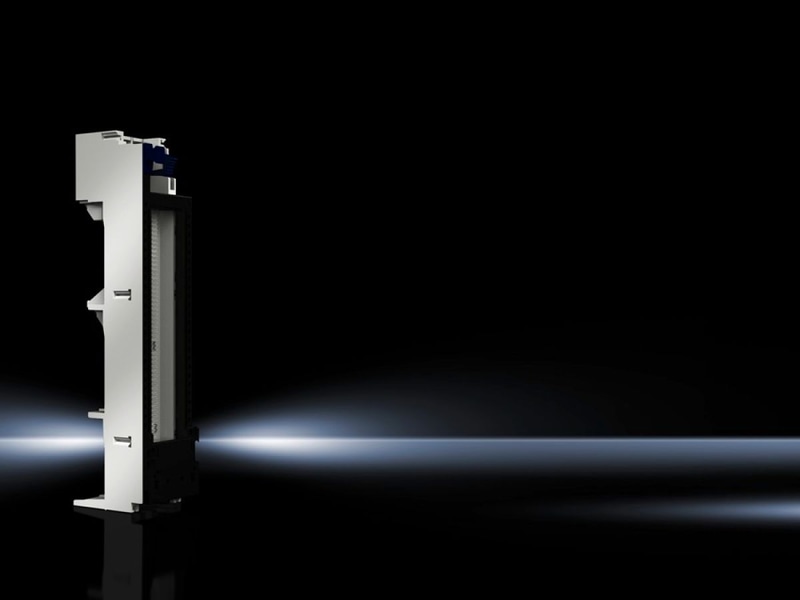

SV OM Support, WH: 45x208 mm, support frame, PinBlock, without contact system
OM support without contact system
For mounting of switchgear with external power supply.
Technical Specifications
Dimensions
| Width | 45 mm |
| Height | 208 mm |
Suitable for busbars
| with cross-section height | 5, 10 mm |
| Material | Polyamide Fire protection corresponding to UL 94-V0 |
| Color | Chassis: RAL 7035 |
| For bar systems with center-to-center spacing | 60 mm |
| Number of Poles | 3-pole |
| PinBlock | Yes |
| Support frame (W x H) | 45 mm x 170 mm |
| Weight/packaging unit | 0.22 kg |
| Customs tariff number | 85369095 |
| EAN | 4028177504363 |
| ETIM 7.0 | EC001166 |
| ECLASS 8.0 | 27400607 |
Why Proax for Rittal 9340260?
Proax is an authorized distributor of Rittal 9340260 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
