9340004
Official DistributorBy Rittal
SKU
RIT9340004
Weight
0.916 kg

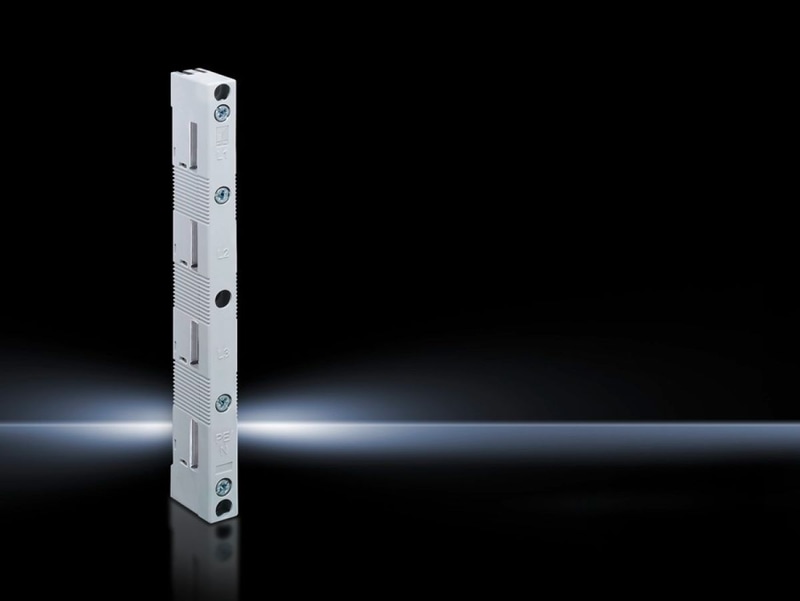

SV Busbar support, 4-pole, 60 mm bar centre distance, for busbar WH: 12x5-30x10 mm, UL design
Busbar Supports For Flat Copper Busbars
For flat copper bars up to 800 A.
Technical Specifications
| Material | Polyamide Fire protection corresponding to UL 94-V0 |
| Color | RAL 7035 |
| Rated operating voltage | 1000 V, 3~ |
| Electrical UL ratings (SCCR) | 22 kA - 600 V, support spacing 500 mm, busbars 15 x 5 - 25 x 10 mm |
| Note on Model No. | When 12 x 5/10 mm busbars are used, spacer 9340.090 must also be used |
| Number of Poles | 4-pole |
| With internal attachment | Yes |
| Center-to-center spacing of busbars | 60 mm |
| Suitable for busbars | 12 x 5 - 30 x 10 mm |
| Packaging unit | 4 pc(s). |
| Weight/packaging unit | 0.916 kg |
| Customs tariff number | 85469010 |
| EAN | 4028177536715 |
| ETIM 7.0 | EC001166 |
| ECLASS 8.0 | 27400607 |
