3069409
Official DistributorSKU
PHX3069409
MPN
FBP 5+1
Weight
0.084 kg
Series FBP

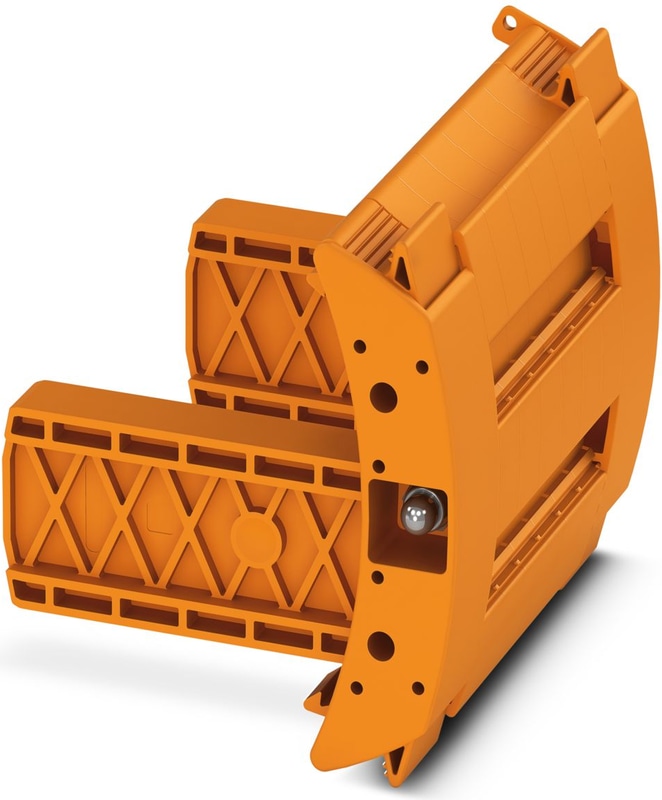

FBP 5+1 - Blind plug
Blind plug, number of positions: 6, color: orange
- Blind plug for FAME..., serves as a protective cover for the test block when the power plug is unplugged
Technical Specifications
Product properties
| Number of Positions | 6 |
| Pitch | 8.2 mm |
Dimensions
| Width | 82.3 mm |
| Height | 72.9 mm |
| Pitch | 8.2 mm |
Material specifications
| Color | orange |
| Flammability rating according to UL 94 | V0 |
| Insulating material | PA |
Ambient conditions
| Ambient Temperature (Operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Accessories
