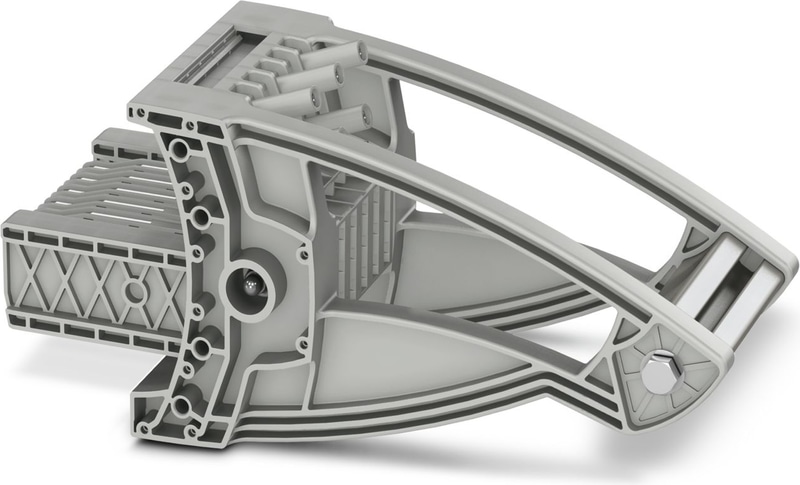

FTP 4+1 - Test plug
Test plug, number of positions: 5, color: gray
- The integrated, robust switch contact is designed for the most stringent demands, and the use of high-quality materials ensures the transmission of signal currents, even after multiple actuations
- The robust test plug guarantees user-friendly handling and provides fixing options for the test cables to be connected
- The test blocks can be used universally for voltage transducers and current transformers
Technical Specifications
Product properties
| Number of Positions | 5 |
| Pitch | 8.2 mm |
| Potentials | 5 |
Electrical properties
| Maximum Load Current | 24 A |
Connection data
| Maximum Load Current | 24 A |
| Test socket torque | 0.5 |
Dimensions
| Pin diameter | 5.7 mm |
| Pitch | 8.2 mm |
Material specifications
| Color | gray |
| Flammability rating according to UL 94 | V0 |
| Insulating material | PA |
| Static insulating material application in cold | -60 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Calorimetric heat release NFPA 130 (ASTM E 1354) | 27,5 MJ/kg |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
Ambient conditions
| Ambient Temperature (Operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Accessories
FBS 1/3-8 - Plug-in bridge, pitch: 8.2 mm, number of positions: 3, pin assignment: 1,3, color: red
FBS 1/4-8 - Plug-in bridge, pitch: 8.2 mm, number of positions: 4, pin assignment: 1, 4, color: red
FBS 1/3/5-8 - Plug-in bridge, pitch: 8.2 mm, number of positions: 5, pin assignment: 1,3,5, color: red
FBS 1/4/7/10-8 - Plug-in bridge, pitch: 8.2 mm, number of positions: 10, pin assignment: 1,4,7,10, color: red
FBS 1/5-8 - Plug-in bridge, pitch: 8.2 mm, number of positions: 5, pin assignment: 1,5, color: red
