2701004
Official DistributorSKU
PHX2701004
MPN
IL BK DIO-PLSET/SCN 12
Weight
0.087 kg

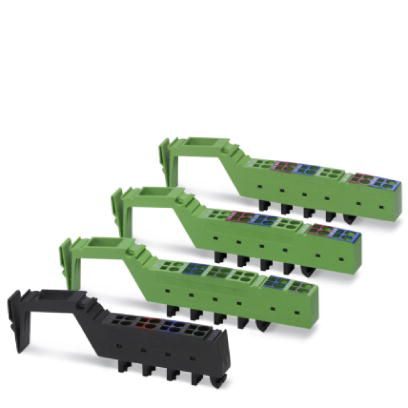

IL BK DIO-PLSET/SCN 12 - Connector set
Connector set for Inline bus coupler with integrated I/Os (IL ... BK DI8 DO4-PAC)
Technical Specifications
General
| Application | Inline bus coupler |
Connection data
| Connection Method | Spring-cage connection |
| Conductor cross section solid min. | 0.08 mm² |
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section flexible min. | 0.08 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section AWG min. | 28 |
| Conductor cross section AWG max. | 16 |
| Stripping length | 8 mm |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Why Proax for Phoenix Contact 2701004?
Proax is an authorized distributor of Phoenix Contact 2701004 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
