Official DistributorBy Rittal
SKU
Weight
0.663 kg
Series Cast aluminum housing GA

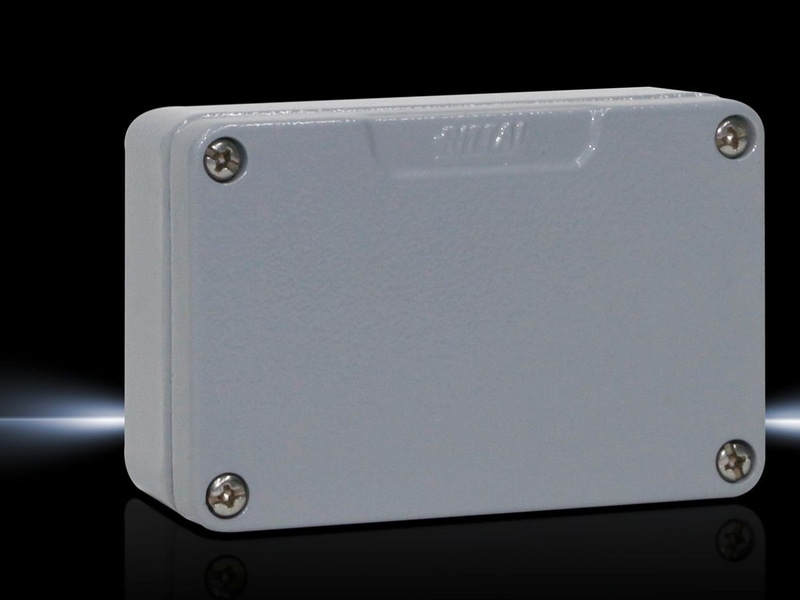

GA Cast aluminium enclosure, WHD: 98x64x35 mm, Cast aluminum, without mounting plate, with cover
Supply includes
Housing with cover
Cover screws, captive
Screws for attaching support rails
Screw for connection of the PE conductor
Cast aluminum housing GA
Spray-finished cast aluminum housing. Protection category IP 66.
Technical Specifications
Dimensions
| Width | 98 mm |
| Height | 64 mm |
| Depth | 36 mm |
Material
| Housing | Cast aluminum |
| Cover | cast aluminum, all-round CR foam rubber round core seal |
| Surface finish | Textured paint |
| Color | RAL 7001 |
| Protection category NEMA | NEMA 4 |
| Protection category IP to EN 60 529 | IP 66 |
| IK code | IK08 |
| Base material | Cast aluminum |
| Packaging unit | 3 pc(s). |
| Weight/packaging unit | 0.663 kg |
| Customs tariff number | 84879090 |
| EAN | 4028177145344 |
| ETIM 7.0 | EC000261 |
| ECLASS 8.0 | 27180101 |
