2203551
Official DistributorSKU
PHX2203551
MPN
D T 7,0 WVGA P
Weight
0.195 kg

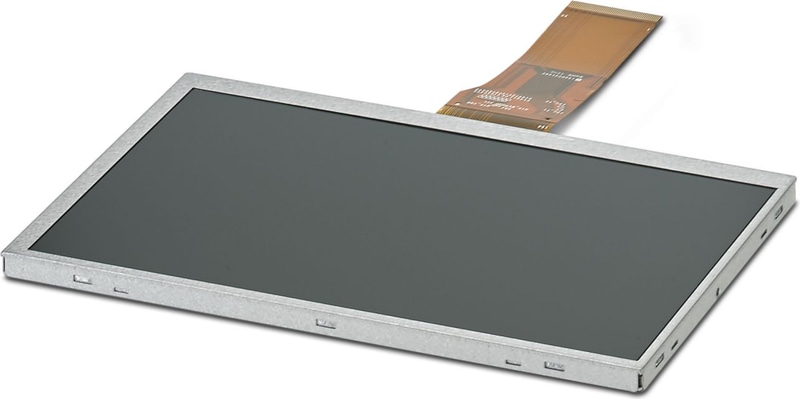

D T 7,0 WVGA P - Display
TFT module 7", 800 x 480 pixels, transmissive/color, LED backlight, white, interface: parallel, 24 bit, operating temperature: -20 °C ... 70 °C
- High-contrast TFT color display
- Easy and time-saving integration into DCS series electronics housings
- Long-term availability
- Ideal protective shield and gasket material
- High resolution with rapid response time
- Common interface for your electronics
Technical Specifications
Display
| Display type | Color display TFT |
| Display type | LCD with backlighting |
| Display type | transmissive |
| Panel technology | TFT |
| Diagonals (cm) | 17.78 cm |
| Diagonals (inch) | 7 in. |
| Screen resolution | 800 x 480 Pixel(s) (WVGA) |
| Display formats | 5:3 |
| Display lighting type | LED, white |
| Viewing direction | 6:00 |
| Controller | HX8264-D, HX8664-B |
| Representation | color |
Interfaces
| Interface | 24-bit RGB |
Dimensions
| Dimensions | 165 mm x 100 mm x 6 mm (Mounting panel dimensions) |
| Dimensions | 157 mm x 89 mm (Viewing area) |
| Dimensions | 154 mm x 86 mm (Active range) |
Material specifications
| Surface characteristics | untreated |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 70 °C |
| Ambient temperature (storage/transport) | -30 °C ... 80 °C |
Mounting
| Mounting Type | Screw mounting |
Packaging specifications
| Type of packaging | packed in cardboard |
