Name: 1624035
Brand: Phoenix Contact
SKU: PHX1624035
Price: 35.7300 CAD
Availability: BackOrder

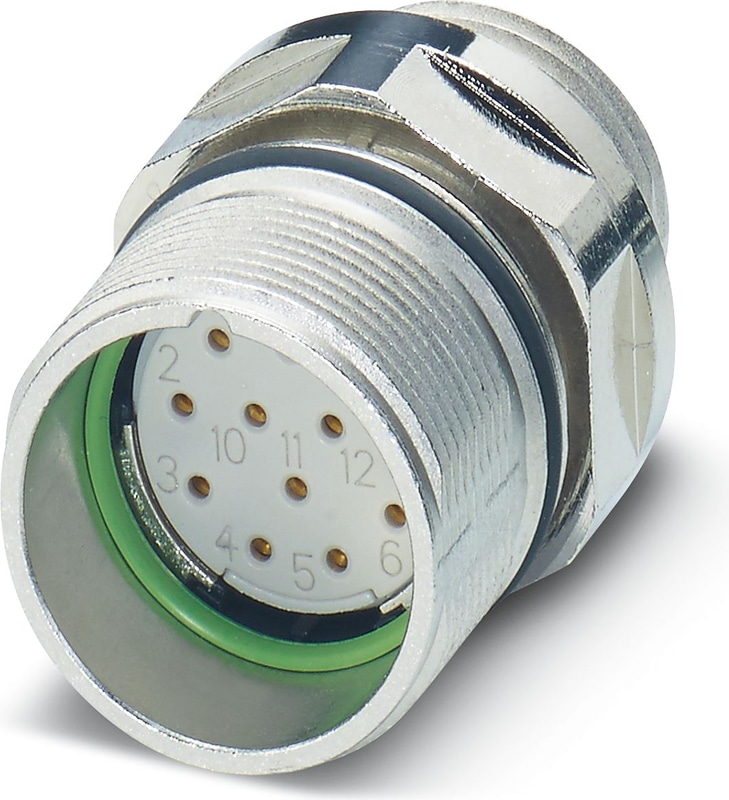

The figure shows the 12-pos. product version

Official Distributor

By Phoenix Contact

SKU

MPN

CA-17S1N8A6L00

Weight

0.038 kg

Series CA

CA-17S1N8A6L00 - Device connector front mounting

M23, Device connector front mounting, series: CA, straight, shielded: yes, for standard and SPEEDCON interlock, No. of pos.: 17, Direction of rotation: Standard, contact connection type: Socket, Crimp connection, Axial seal, Central fastening M20 x 1.5, can be positioned via a locking nut, coding: N

Safe use in the field, thanks to high degree of protection
Connector for flexible on-site assembly
Consistent EMC protection for reliable transmission of signals
Crimping connection: vibration- and temperature-resistant assembly

Notes

Order information:

Order 17 x 1 mm crimp contacts separately

Material specifications

Flammability rating according to UL 94

Connection 1

Head design

Socket

Insulating body

Note	Order information: Order crimp contacts Ø 1 mm separately
Coding	N
Insulation body material	PA 6.6
Connection Method	Crimp connection
Contact switching type	Socket
Application	Signal
Number of Positions	17
Direction of rotation	Standard
Connection profile	17
Contact diameter Signal contacts	1 mm
Litz wire cross-section Signal contacts min.	0.08 mm²
Litz wire cross-section Signal contacts max.	1 mm²
Nominal current per signal contact	8 A
Note	for max. connection cross section
Rated voltage Signal contact	48 V AC
Rated surge voltage	1.5 kV
Overvoltage category	III
Degree of pollution	3

Housing

Housing Material	Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn)
Type of locking	for standard and SPEEDCON interlock
Pg screw connection	none
Degree of protection (plugged in)	IP67
Thread type	M23

Ambient conditions

Ambient temperature (storage/transport)	15 °C ... 25 °C
Permissible humidity (storage/transport)	50 % ... 65 %

1596772
RC-11S2000 - Crimp contact, Socket, turned, Single contact, contact diameter: 1 mm, crimp range: 0.08 mm2 ... 0.22 mm2, Contact release tool not necessary for the 12- and 17-pos. crimp versions of the M23-PRO series, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1241093
1599600
RC-12S2000 - Crimp contact, Socket, turned, Single contact, contact diameter: 1 mm, crimp range: 0.14 mm2 ... 0.56 mm2, Contact release tool not necessary for the 12- and 17-pos. crimp versions of the M23-PRO series, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1241093
1602998
RC-1KS2000 - Crimp contact, Socket, turned, Single contact, contact diameter: 1 mm, crimp range: 0.5 mm2 ... 1 mm2, Contact release tool not necessary for the 12- and 17-pos. crimp versions of the M23-PRO series, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1241572
1604225
Protective cap - RC-Z2059
1611797
Plastic anti-static dust protection cap - RC-Z2469
1604260
Metal protective cap - RC-Z2104
1604236
Metal protective cap - RC-Z2068
1620699
CA-Z0001 - Unlocking tool for contact carriers for snapping in the M23 signal device connectors
1620624
Color-coding, color: green
1603327
RC-22S2000 - Crimp contact, Socket, rolled, Single contact, contact diameter: 1 mm, crimp range: 0.22 mm2 ... 0.56 mm2, Single contact, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)
