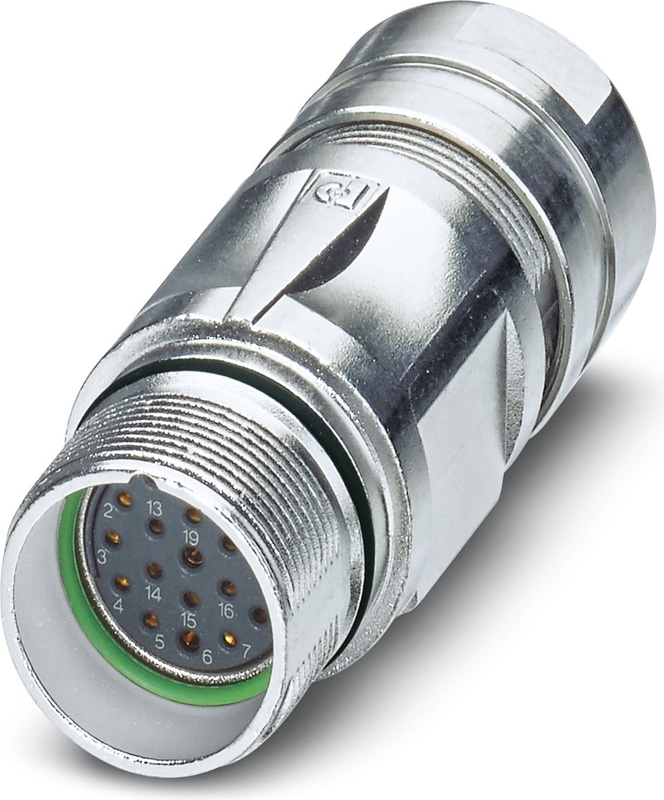

CA-1RS1N8A90DN - Coupler connector

M23, Coupler connector, series: CA, straight, shielded: yes, for standard and SPEEDCON interlock, No. of pos.: 16+2+FE, Direction of rotation: Standard, contact connection type: Socket, Crimp connection, cable diameter range: 3 mm ... 14.5 mm, coding: N, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1245041

  • Safe use in the field, thanks to high degree of protection
  • Connector for flexible on-site assembly
  • Consistent EMC protection for reliable transmission of signals
  • Crimping connection: vibration- and temperature-resistant assembly

Documents

Technical Specifications

Notes

Order information:Order crimp contacts 16 x Ø 1 mm, 3 x Ø 1.5 mm separately

Insulating body

NoteOrder information: Order crimp contacts 16 x Ø 1 mm, 3 x Ø 1.5 mm separately
CodingN
Insulation body materialPA 6.6
Insertion/withdrawal cycles100
Connection MethodCrimp connection
Contact switching typeSocket
ApplicationSignal
Number of Positions19
Direction of rotationStandard
Connection profile16+2+FE
Contact diameter Power contacts1.5 mm
Litz wire cross-section Power contacts min.0.08 mm²
Litz wire cross-section Power contacts max.1 mm²
Rated current Power contacts10 A
Notefor max. connection cross section
Rated voltage48 V AC
Rated voltage74 V DC
Rated surge voltage1.5 kV
Overvoltage categoryII
Degree of pollution3
Contact diameter Signal contacts1 mm
Litz wire cross-section Signal contacts min.0.08 mm²
Litz wire cross-section Signal contacts max.1 mm²
Nominal current per signal contact8 A
Notefor max. connection cross section
Rated voltage Signal contact48 V AC
Rated surge voltage1.5 kV
Overvoltage categoryIII
Degree of pollution3
Installation height2000 m

Housing

Housing MaterialTurned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn)
Type of lockingfor standard and SPEEDCON interlock
Pg screw connectionnone
Degree of protection (plugged in)IP67
Thread typeM23

Seal

External Cable Diameter3 mm ... 14.5 mm
Seal materialNBR
Accessories
  • 1604225
    1604225
    Protective cap - RC-Z2059
  • 1611797
    1611797
    Plastic anti-static dust protection cap - RC-Z2469
  • 1604260
    1604260
    Metal protective cap - RC-Z2104
  • 1604236
    1604236
    Metal protective cap - RC-Z2068
  • 1596772
    1596772
    RC-11S2000 - Crimp contact, Socket, turned, Single contact, contact diameter: 1 mm, crimp range: 0.08 mm2 ... 0.22 mm2, Contact release tool not necessary for the 12- and 17-pos. crimp versions of the M23-PRO series, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1241093
  • 1599600
    1599600
    RC-12S2000 - Crimp contact, Socket, turned, Single contact, contact diameter: 1 mm, crimp range: 0.14 mm2 ... 0.56 mm2, Contact release tool not necessary for the 12- and 17-pos. crimp versions of the M23-PRO series, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1241093
  • 1602998
    1602998
    RC-1KS2000 - Crimp contact, Socket, turned, Single contact, contact diameter: 1 mm, crimp range: 0.5 mm2 ... 1 mm2, Contact release tool not necessary for the 12- and 17-pos. crimp versions of the M23-PRO series, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1241572
  • 1623775
    1623775
    RC-15S2000 - Crimp contact, Socket, turned, contact diameter: 1.5 mm, crimp range: 0.5 mm2 ... 1 mm2, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1244969
  • 1620592
    1620592
    RF-Z0015 - Color coding, color: orange
  • 1620593
    1620593
    Color-coding, color: black
  • 1620588
    1620588
    RF-Z0014 - Color coding, color: green
  • 1607905
    1607905
    Square mounting flange - RF-Z0003
