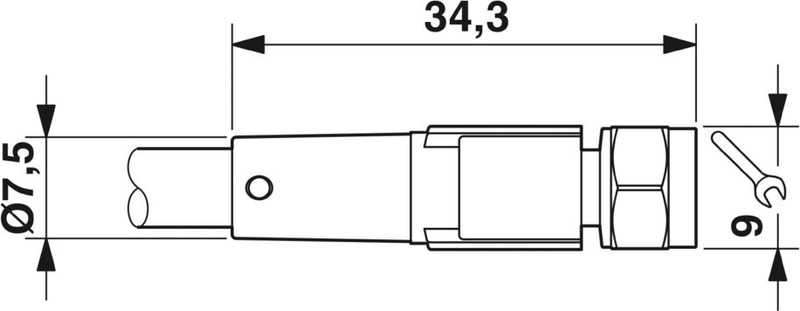

Socket M8 x 1, straight
Official DistributorSKU
MPN
SAC-3P-M 8MS/ 0,6-500/M 8FS VA
Weight
0.034 kg
Series SAC-3P
SAC-3P-M 8MS/ 0,6-500/M 8FS VA - Sensor/actuator cable
Sensor/actuator cable, 3-position, PVC, gray RAL 7001, Plug straight M8, coding: A, on Socket straight M8, cable length: 0.6 m
SAC-3P
The Phoenix Contact SAC-3P Series comprises sensor/actuator cables designed for reliable signal transmission in industrial automation applications. These 3-position cables are available in various configurations to accommodate different connectivity requirements.
Key Features:
Connector Types: The series offers cables with M8 and M12 connectors, available in both straight and angled orientations, providing flexibility for diverse installation scenarios.
Cable Materials: Cables are constructed with halogen-free polyurethane (PUR) or polyvinyl chloride (PVC) jackets, ensuring durability and resistance to environmental factors.
Coding: Equipped with A-coding, these cables are standardized for sensor/actuator connections, ensuring compatibility across various devices.
Technical Specifications
Product properties
| Number of Positions | 3 |
| No. of cable outlets | 1 |
| Shielded | no |
| Coding | A |
Insulation characteristics
| Overvoltage category | II |
| Degree of pollution | 3 |
Material specifications
| Flammability rating according to UL 94 | HB |
| Seal material | NBR |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Contact Material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material for screw connection | Stainless steel |
Electrical properties
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 48 V AC |
| Nominal voltage UN | 60 V DC |
| Nominal current IN | 4 A |
Signaling
| Status display | No |
| Status display present | No |
Connection 1
| Type | Plug straight M8 |
| Number of Positions | 3 |
| Coding type | A |
Connection 2
| Type | Socket straight M8 |
| Number of Positions | 3 |
Cable/line
| Cable Length | 0.6 m |
PVC gray [500]
| Cable weight | 40 kg/km |
| UL AWM style | 2464 / 1729 (80°C/300 V) |
| Number of Positions | 3 |
| Shielded | no |
| Cable Type | PVC gray [500] |
| Conductor structure signal line | 19x 0.15 mm |
| AWG Signal Line | 22 |
| Conductor Cross Section | 3x 0.34 mm² (Signal line) |
| Wire diameter incl. insulation | 1.26 mm ±0.05 mm |
| External Cable Diameter | 4.30 mm ±0.2 mm |
| Outer sheath, material | PVC |
| External sheath, color | gray RAL 7001 |
| Conductor material | Bare Cu litz wires |
| Material wire insulation | PVC |
| Single wire, color | brown, blue, black |
| Thickness, insulation | ≥ 0.23 mm (Core insulation) |
| Thickness, outer sheath | ≥ 0.76 mm |
| Overall twist | 3 wires, twisted |
| Max. conductor resistance | max. 57 Ω/km (at 20 °C) |
| Insulation resistance | ≥ 100 MΩ*km (at 20 °C) |
| Nominal voltage, cable | ≤ 300 V |
| Test voltage | ≥ 2500 V |
| Minimum bending radius, fixed installation | 5 x D |
| Minimum bending radius, flexible installation | 10 x D |
| Smallest bending radius, fixed installation | 22 mm |
| Smallest bending radius, movable installation | 43 mm |
| Flame resistance | As per UL-Style 2464 |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -25 °C ... 80 °C (Cable, flexible installation) |
Ambient conditions
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
| Degree of Protection | IP68 |
| Degree of Protection | IP69K |
| Ambient Temperature (Operation) | -25 °C ... 90 °C (Plug / socket) |
| Ambient Temperature (Operation) | -25 °C ... 80 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -5 °C ... 80 °C (Cable, flexible installation) |
