Valve connector, type BI
Official DistributorSKU
MPN
SAC-3P-2,0-534/BI-1L-Z 110V
Weight
0.116 kg
Series SAC-3P
SAC-3P-2,0-534/BI-1L-Z 110V - Sensor/actuator cable
Sensor/actuator cable, 3-position, PVC, black, free cable end, on Valve connector BI (11 mm), coding: A, with 1 LED, Wiring: Z diode, cable length: 2 m
SAC-3P
The Phoenix Contact SAC-3P Series comprises sensor/actuator cables designed for reliable signal transmission in industrial automation applications. These 3-position cables are available in various configurations to accommodate different connectivity requirements.
Key Features:
Connector Types: The series offers cables with M8 and M12 connectors, available in both straight and angled orientations, providing flexibility for diverse installation scenarios.
Cable Materials: Cables are constructed with halogen-free polyurethane (PUR) or polyvinyl chloride (PVC) jackets, ensuring durability and resistance to environmental factors.
Coding: Equipped with A-coding, these cables are standardized for sensor/actuator connections, ensuring compatibility across various devices.
Technical Specifications
Product properties
| Application | Standard |
| Number of Positions | 3 |
| No. of cable outlets | 1 |
| Coding | A |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Material specifications
| Flammability rating according to UL 94 | HB |
| Seal material | TPU |
| Material housing valve plug | TPU |
| Material of grip body | TPU |
| Contact Material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Contact Material | CuSn |
| Valve plug contact insert material | PA 6.6 |
| Contact surface material | Sn |
| Material for screw connection | Zinc die-cast, nickel-plated |
Electrical properties
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 110 V AC |
| Nominal voltage UN | 110 V DC |
| Nominal current IN | 4 A |
Signaling
| Status display | 1 LED |
| Status display present | Yes |
Connection 1
| Type | free cable end |
Connection 2

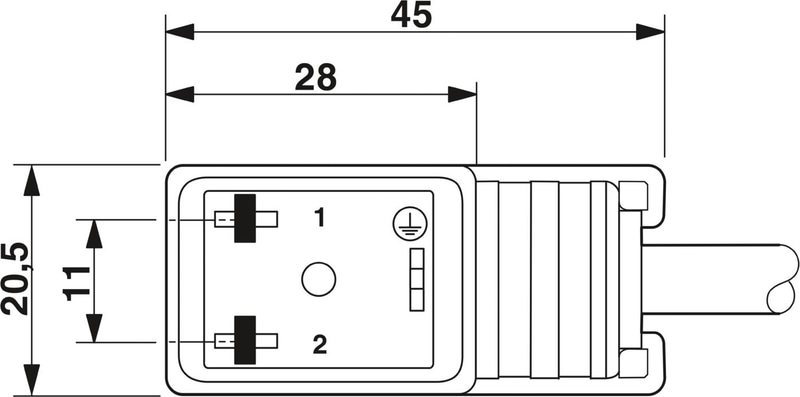

| Type | Valve connector BI (11 mm) |
| Number of Positions | 3 |
| Coding type | A |
| Material | CuSn (Contact) |
| Material | Sn (Contact surface) |
| Material | PA 6.6 (Contact carriers) |
| Material | TPU (Housing) |
Cable/line
| Cable Length | 2 m |
PVC, 0.75 mm², black [534]
| Cable weight | 49.1 kg/km |
| Number of Positions | 3 |
| Shielded | no |
| Cable Type | PVC, 0.75 mm², black [534] |
| Conductor structure signal line | 24x 0.20 mm |
| AWG Signal Line | 18 |
| Conductor Cross Section | 3x 0.75 mm² |
| Wire diameter incl. insulation | 1.7 mm ±0.1 mm |
| External Cable Diameter | 5.30 mm ±0.2 mm |
| Outer sheath, material | PVC |
| External sheath, color | black |
| Conductor material | Bare Cu litz wires |
| Material wire insulation | PVC |
| Single wire, color | black 1, black 2, green/yellow |
| Overall twist | 3 wires, twisted |
| Max. conductor resistance | 26 Ω/km (at 20 °C) |
| Insulation resistance | min. 20 MΩ*km (at 20 °C) |
| Nominal voltage, cable | 300 V |
| Test voltage | 1200 V |
| Minimum bending radius, fixed installation | 5 x D |
| Smallest bending radius, fixed installation | 27 mm |
| Flame resistance | DIN VDE 0482 |
| Flame resistance | DIN EN 50265-2-1 |
| Flame resistance | in acc. to UL VW1 |
| Resistance to Oil | in accordance with DIN EN 60811-2-1 |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -5 °C ... 80 °C (Cable, flexible installation) |
Ambient conditions
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -25 °C ... 90 °C (Plug / socket) |
| Ambient Temperature (Operation) | -20 °C ... 85 °C (valve plug) |
M12
| Standard designation | M12 connector |
| Standards/specifications | IEC 61076-2-101 |
Why Proax for Phoenix Contact 1426308?
Proax is an authorized distributor of Phoenix Contact 1426308 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
