8808750
Official DistributorBy Rittal
SKU
RIT8808750
Weight
137 kg
This item is ineligible for free shipping due to its size/weight.

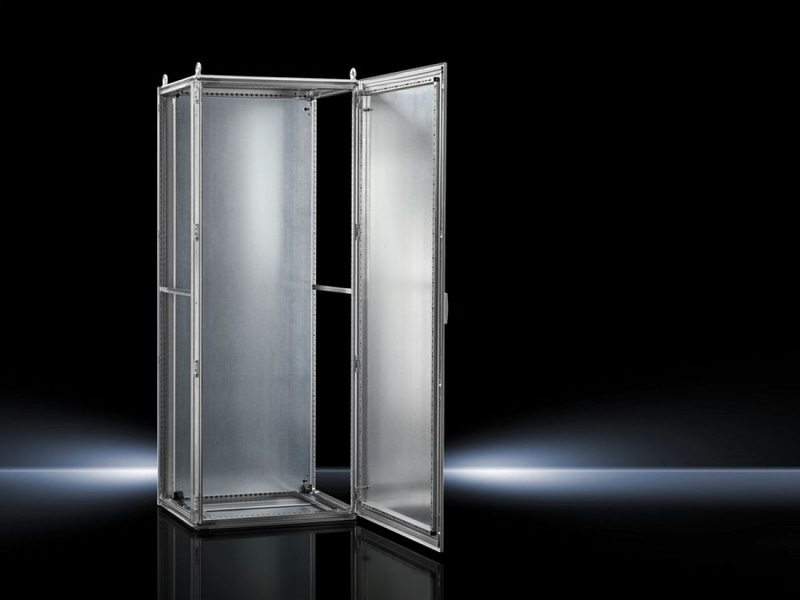

TS Bayed enclosure system, WHD: 800x2000x800 mm, Sheet steel, EMC version, with mounting plate, single door at the front
Supply includes
Enclosure frame
Door(s)
Door catch on right, may be swapped to the left
Rear panel
Roof plate
Base Plates
Mounting plate
4 eyebolts
Lock: 3 mm double-bit
2 TS punched rails, 18 x 38 mm
2 support strips fitted in the enclosure depth
Technical Specifications
Dimensions
| Width | 800 mm |
| Height | 2,000 mm |
| Depth | 800 mm |
Material
| Enclosure frame | Carbon steel with zinc-magnesium coating, 1.5 mm |
| Roof | Carbon steel with zinc-magnesium coating, 1.5 mm |
| Door | Carbon steel with zinc-magnesium coating, 2.0 mm |
| Rear wall | Carbon steel with zinc-magnesium coating, 1.5 mm |
| Base plates | Carbon steel, 1.5 mm |
| Mounting plate | Carbon steel, 3.0 mm |
Surface finish
| Enclosure frame | Uncoated |
| Door, rear panel and roof | Spray-finished on the outside and paint-free on the inside |
| Base plates | Zinc-plated |
| Mounting plate | Zinc-plated |
| Product modification | The benefits are improved formability, optimized corrosion behavior, and uniform appearance. |
| Color | RAL 7035 |
| Protection category IP to EN 60 529 | IP 54 |
| EMC version | Yes |
| Note | For bayed enclosures, the EMC baying seal is required |
| Base material | Carbon steel |
| Weight/packaging unit | 137 kg |
| EAN | 4028177475748 |
| ETIM 7.0 | EC002623 |
| ECLASS 8.0 | 27180101 |
Why Proax for Rittal 8808750?
Proax is an authorized distributor of Rittal 8808750 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
