8802120
Official DistributorBy Rittal
SKU
RIT8802120
Weight
0.432 kg

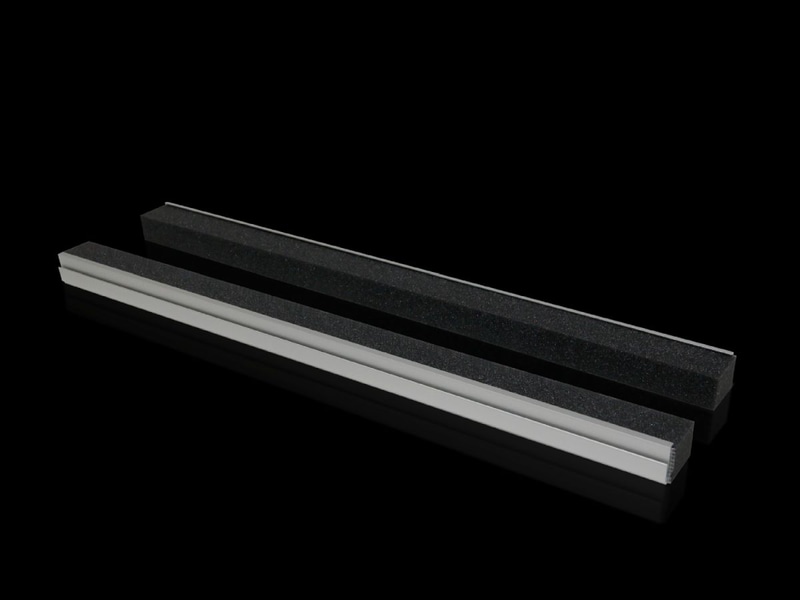

TS profile for cable entry, centered, for TS, VX SE, TP, for W: 1200 mm
Supply includes
Plug-in sections, incl. foam rubber clamp strip
Section for cable entry, center for TS, TP
Inserted in base plate.
Technical Specifications
Material
| Foam rubber cable clamping profile | PU foam |
Suitable for
| Enclosure Type | TP |
| Benefits | Particularly well-suited to cables with identical cross-sections |
| Technical specifications | Foam rubber cable clamping profile: Cross-section: 30 x 25 mm |
| Applications | For top-mounting on base plates |
| Note | 2 pc(s). are sufficient for one base opening up to an enclosure width of 800 mm |
| Protection category IP to IEC 60 529 | IP 55 if correctly installed |
| Packaging unit | 4 pc(s). |
| Weight/packaging unit | 0.432 kg |
| Customs tariff number | 76042990 |
| EAN | 4028177382510 |
| ETIM 7.0 | EC000211 |
| ECLASS 8.0 | 27142421 |
Why Proax for Rittal 8802120?
Proax is an authorized distributor of Rittal 8802120 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
