1415780
Official DistributorSKU
PHX1415780
MPN
H4X:D3FF:2U3FF
Weight
0.022 kg
Series H
H4X:D3FF:2U3FF - Housing

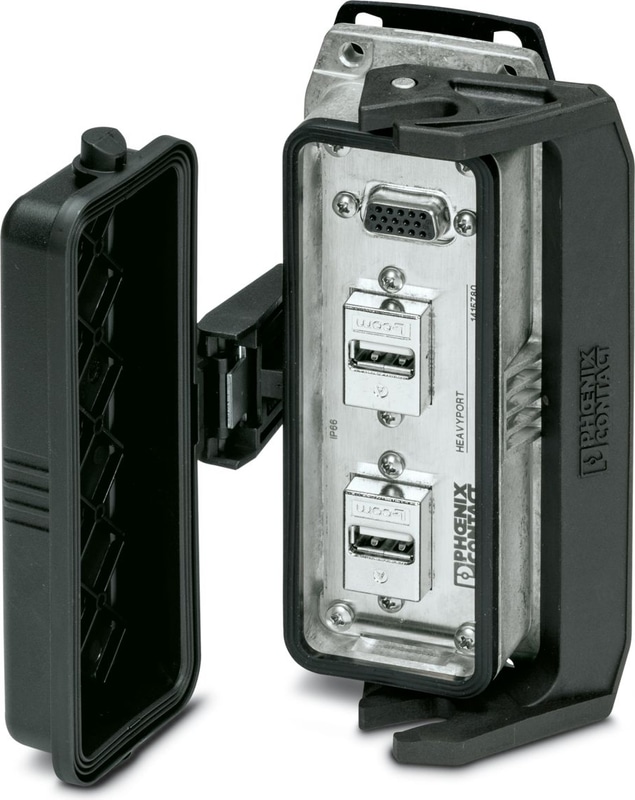

HEAVYPORT B24 panel mounting base, with single locking latch, with plastic protective cover, with stainless steel front plate connections, 2x USB Type A/A (female/female), 1x D-SUB 15 (female/female)
- Good shielding in the event of electromagnetic interference
Technical Specifications
Product properties
| Housing type | Panel mounting base |
| Application | Standard |
| Type | B24 |
| Protective cover | yes |
Electrical properties
| Rated current | 3 A () |
Connection data
| Tightening torque | 1.5 ... 2 Nm |
Dimensions
| Width | 53 mm |
| Height | 30.5 mm |
| Length | 140.5 mm |
Installation dimensions
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 113 mm |
Material specifications
| Seal material | NBR, conductive |
| Seal material | NBR, conductive |
| Housing Material | Die-cast aluminum, salt water resistant |
| Housing surface material | uncoated |
| Material, protective cover | PA |
| Locking latch material | Polyamide |
| Impact strength | IK08 |
Connector
| Contact insert design | with 2x USB Type A/A 2.0 |
| Contact insert design | with 1x D-SUB 15 socket/socket VGA #4-40 UNC bolts |
Ambient conditions
| Degree of Protection | IP66 |
| Degree of Protection | IP67 |
| Impact strength | IK08 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C (Housing) |
Accessories
C-SCFFI 2,5/6,3X0,8 - Slip-on sleeve, fully isolated, blue, 1.5 ... 2.5 mm2, for plug 6.3 x 0.8 mm
C-SCFFI 6/6,3X0,8 - Slip-on sleeve, fully insulated, yellow, 4 ... 6 mm2, for 6.3 x 0.8 mm plugs
C-SCFFI 1,5/6,3X0,8 - Slip-on sleeve, fully isolated, red, 0.5 ... 1.5 mm2, for plug 6.3 x 0.8 mm
C-SCFFI 2,5/4,8X0,8 - Slip-on sleeve, fully isolated, blue, 1.5 ... 2.5 mm2, for plug 4.8 x 0.8 mm- C-SCFFI 2,5/4,8X0,5 - Slip-on sleeve, fully isolated, blue, 1.5 ... 2.5 mm2, for plug 4.8 x 0.5 mm
C-SCFFI 1,5/4,8X0,8 - Slip-on sleeve, fully isolated, red, 0.5 ... 1.5 mm2, for plug 4.8 x 0.8 mm
C-SCFFI 1,5/4,8X0,5 - Slip-on sleeve, fully isolated, red, 0.5 ... 1.5 mm2, for plug 4.8 x 0.5 mm
Why Proax for Phoenix Contact 1415780?
Proax is an authorized distributor of Phoenix Contact 1415780 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
