Name: 1415765
Brand: Phoenix Contact
SKU: PHX1415765

Housing type

Application

Type

Protective cover

Tightening torque

Width

Height

Length

Drill hole distance, horizontal

Drill hole distance, vertical

Hole diameter

Width of the assembly cutout

Length of the assembly cutout

Seal material

Housing Material

Housing surface material

Material, protective cover

Locking latch material

Impact strength

Contact insert design

Degree of Protection

Ambient Temperature (Operation)

Request replacement

Estimated Lead Time

We'll send you an email with the lead time.
Note: We only deliver to Canada and US.

Request for lead time

{ manufacturer } Availability

Order { manufacturer } { mpn } { name } online at Proax. Authorized distributor offering fast shipping and local pickup across Canada.

Buy { manufacturer } { mpn } { name }

We are committed to protecting your privacy and security. We use Stripe, a PCI level 1 certified payment processor and do not sell or share any of your financial information.

 Our highly skilled in-house technical team is ready to assist with any technical needs.

<h3>C-SCFFI 2,5/6,3X0,8 - Connector</h3><p>Slip-on sleeve, fully isolated, blue, 1.5 ... 2.5 mm2, for plug 6.3 x 0.8 mm</p><ul><li>Hard-soldered crimping zone for maximum conductor pull-out forces in connection with CRIMPFOX RCI... pliers</li><li>Easy and reliable conductor entry thanks to 'EASY ENTRY'</li><li>Halogen-free</li><li>Electrogalvanized</li></ul>

3240547

C-SCFFI 2,5/6,3X0,8 - Slip-on sleeve, fully isolated, blue, 1.5 ... 2.5 mm2, for plug 6.3 x 0.8 mm

<h3>C-SCFFI 6/6,3X0,8 - Connector</h3><p>Slip-on sleeve, fully insulated, yellow, 4 ... 6 mm2, for 6.3 x 0.8 mm plugs</p><ul><li>Hard-soldered crimping zone for maximum conductor pull-out forces in connection with CRIMPFOX RCI... pliers</li><li>Easy and reliable conductor entry thanks to 'EASY ENTRY'</li><li>Halogen-free</li><li>Electrogalvanized</li></ul>

3240541

C-SCFFI 6/6,3X0,8 - Slip-on sleeve, fully insulated, yellow, 4 ... 6 mm2, for 6.3 x 0.8 mm plugs

<h3>C-SCFFI 1,5/6,3X0,8 - Connector</h3><p>Slip-on sleeve, fully isolated, red, 0.5 ... 1.5 mm2, for plug 6.3 x 0.8 mm</p><ul><li>Hard-soldered crimping zone for maximum conductor pull-out forces in connection with CRIMPFOX RCI... pliers</li><li>Easy and reliable conductor entry thanks to 'EASY ENTRY'</li><li>Halogen-free</li><li>Electrogalvanized</li></ul>

3240538

C-SCFFI 1,5/6,3X0,8 - Slip-on sleeve, fully isolated, red, 0.5 ... 1.5 mm2, for plug 6.3 x 0.8 mm

<h3>C-SCFFI 2,5/4,8X0,8 - Connector</h3><p>Slip-on sleeve, fully isolated, blue, 1.5 ... 2.5 mm2, for plug 4.8 x 0.8 mm</p><ul><li>Hard-soldered crimping zone for maximum conductor pull-out forces in connection with CRIMPFOX RCI... pliers</li><li>Easy and reliable conductor entry thanks to 'EASY ENTRY'</li><li>Halogen-free</li><li>Electrogalvanized</li></ul>

3240540

C-SCFFI 2,5/4,8X0,8 - Slip-on sleeve, fully isolated, blue, 1.5 ... 2.5 mm2, for plug 4.8 x 0.8 mm

<h3>C-SCFFI 2,5/4,8X0,5 - Connector</h3><p>Slip-on sleeve, fully isolated, blue, 1.5 ... 2.5 mm2, for plug 4.8 x 0.5 mm</p><ul><li>Hard-soldered crimping zone for maximum conductor pull-out forces in connection with CRIMPFOX RCI... pliers</li><li>Easy and reliable conductor entry thanks to 'EASY ENTRY'</li><li>Halogen-free</li><li>Electrogalvanized</li></ul>

3240539

C-SCFFI 2,5/4,8X0,5 - Slip-on sleeve, fully isolated, blue, 1.5 ... 2.5 mm2, for plug 4.8 x 0.5 mm

<h3>C-SCFFI 1,5/4,8X0,8 - Connector</h3><p>Slip-on sleeve, fully isolated, red, 0.5 ... 1.5 mm2, for plug 4.8 x 0.8 mm</p><ul><li>Hard-soldered crimping zone for maximum conductor pull-out forces in connection with CRIMPFOX RCI... pliers</li><li>Easy and reliable conductor entry thanks to 'EASY ENTRY'</li><li>Halogen-free</li><li>Electrogalvanized</li></ul>

3240537

C-SCFFI 1,5/4,8X0,8 - Slip-on sleeve, fully isolated, red, 0.5 ... 1.5 mm2, for plug 4.8 x 0.8 mm

<h3>C-SCFFI 1,5/4,8X0,5 - Connector</h3><p>Slip-on sleeve, fully isolated, red, 0.5 ... 1.5 mm2, for plug 4.8 x 0.5 mm</p><ul><li>Hard-soldered crimping zone for maximum conductor pull-out forces in connection with CRIMPFOX RCI... pliers</li><li>Easy and reliable conductor entry thanks to 'EASY ENTRY'</li><li>Halogen-free</li><li>Electrogalvanized</li></ul>

3240536

C-SCFFI 1,5/4,8X0,5 - Slip-on sleeve, fully isolated, red, 0.5 ... 1.5 mm2, for plug 4.8 x 0.5 mm

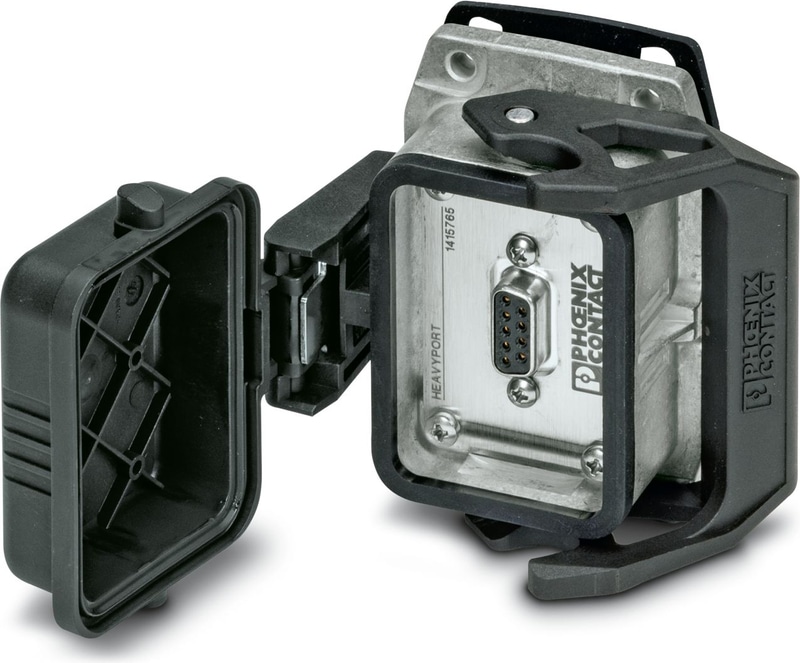

<h3>H1X:D1MF - Housing</h3><p>HEAVYPORT B6 panel mounting base, with single locking latch, with plastic protective cover, with stainless steel front plate connections, 1x D-SUB 9 (male/female)</p><ul><li>Good shielding in the event of electromagnetic interference</li></ul>

1415765

H1X:D1MF - Housing

Product properties

Connection data

Dimensions

Installation dimensions

Material specifications

Connector

Ambient conditions

Why Proax for Phoenix Contact 1415765?

Housing type	Panel mounting base
Application	Standard
Type	B6
Protective cover	yes

Width	53 mm
Height	30.5 mm
Length	80.5 mm
Drill hole distance, horizontal	70 mm
Drill hole distance, vertical	32 mm
Hole diameter	4.5 mm

Width of the assembly cutout	35 mm
Length of the assembly cutout	52 mm

Seal material	NBR, conductive
Seal material	NBR, conductive
Housing Material	Die-cast aluminum, salt water resistant
Housing surface material	uncoated
Material, protective cover	PA
Locking latch material	Polyamide
Impact strength	IK08

Degree of Protection	IP66
Degree of Protection	IP67
Impact strength	IK08
Ambient Temperature (Operation)	-40 °C ... 125 °C (Housing)
