1415760
Official DistributorSKU
PHX1415760
MPN
H1X:C5FF
Weight
0.022 kg
Series H
H1X:C5FF - Housing

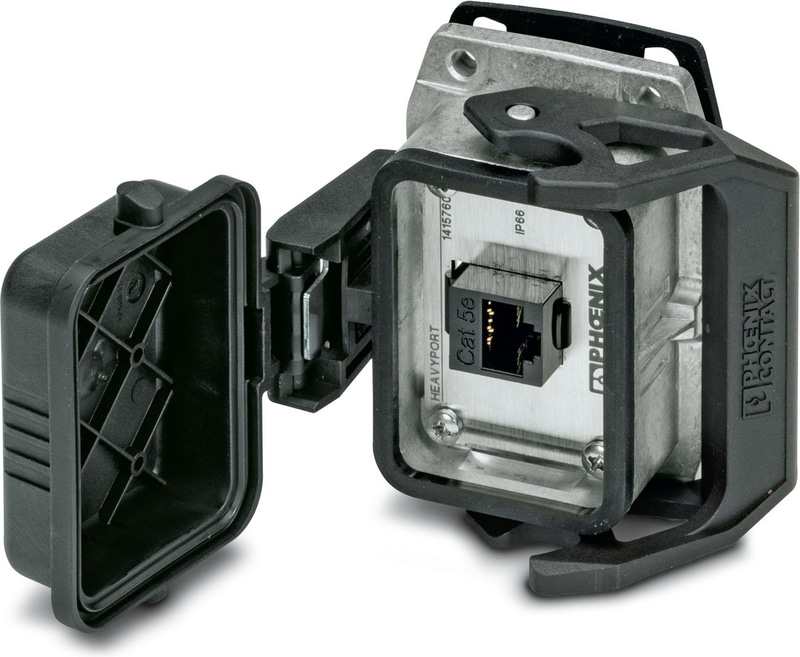

HEAVYPORT B6 panel mounting base, with single locking latch, with plastic protective cover, with stainless steel front plate connections, 1x RJ45 CAT5e (female/female)
- Good shielding in the event of electromagnetic interference
Technical Specifications
Product properties
| Housing type | Panel mounting base |
| Application | Standard |
| Type | B6 |
| Protective cover | yes |
Electrical properties
| Rated current | max. 1.5 A DC (RJ45) |
Connection data
| Tightening torque | 1.5 ... 2 Nm |
Dimensions
| Width | 53 mm |
| Height | 30.5 mm |
| Length | 80.5 mm |
| Drill hole distance, horizontal | 70 mm |
| Drill hole distance, vertical | 32 mm |
| Hole diameter | 4.5 mm |
Installation dimensions
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 52 mm |
Material specifications
| Seal material | NBR, conductive |
| Seal material | NBR, conductive |
| Housing Material | Die-cast aluminum, salt water resistant |
| Housing surface material | uncoated |
| Material, protective cover | PA |
| Locking latch material | Polyamide |
| Impact strength | IK08 |
Connector
| Contact insert design | with 1x RJ45 Cat 5E Ethernet Socket/socket, snap-in slot locking |
Ambient conditions
| Degree of Protection | IP66 |
| Degree of Protection | IP67 |
| Impact strength | IK08 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C (Housing) |
Accessories
C-SCFFI 2,5/6,3X0,8 - Slip-on sleeve, fully isolated, blue, 1.5 ... 2.5 mm2, for plug 6.3 x 0.8 mm
C-SCFFI 6/6,3X0,8 - Slip-on sleeve, fully insulated, yellow, 4 ... 6 mm2, for 6.3 x 0.8 mm plugs
C-SCFFI 1,5/6,3X0,8 - Slip-on sleeve, fully isolated, red, 0.5 ... 1.5 mm2, for plug 6.3 x 0.8 mm
C-SCFFI 2,5/4,8X0,8 - Slip-on sleeve, fully isolated, blue, 1.5 ... 2.5 mm2, for plug 4.8 x 0.8 mm- C-SCFFI 2,5/4,8X0,5 - Slip-on sleeve, fully isolated, blue, 1.5 ... 2.5 mm2, for plug 4.8 x 0.5 mm
C-SCFFI 1,5/4,8X0,8 - Slip-on sleeve, fully isolated, red, 0.5 ... 1.5 mm2, for plug 4.8 x 0.8 mm
C-SCFFI 1,5/4,8X0,5 - Slip-on sleeve, fully isolated, red, 0.5 ... 1.5 mm2, for plug 4.8 x 0.5 mm
Why Proax for Phoenix Contact 1415760?
Proax is an authorized distributor of Phoenix Contact 1415760 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
