1415759
Official DistributorSKU
PHX1415759
MPN
H4X:CSFF:AC3
Weight
0.022 kg
Series H

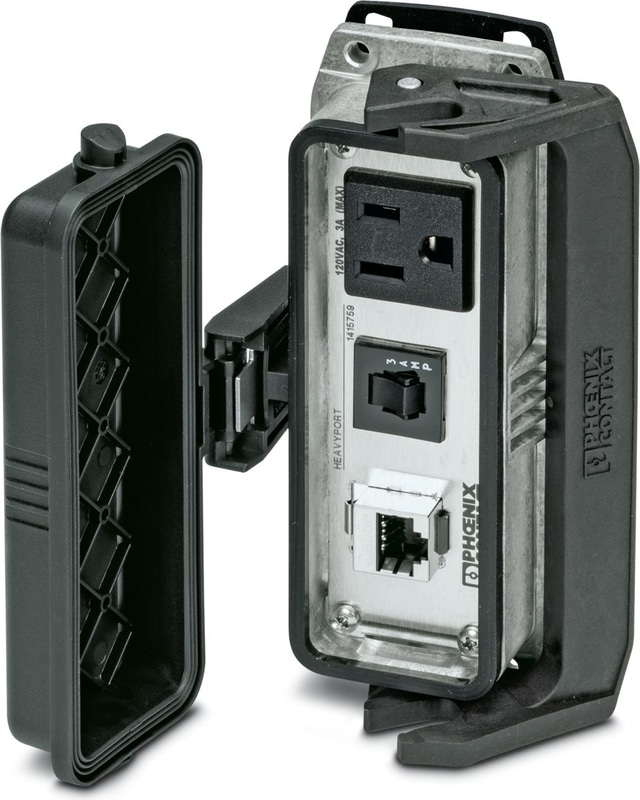

H4X:CSFF:AC3 - Housing
HEAVYPORT B24 panel mounting base, with single locking latch, with plastic protective cover, with stainless steel front plate connections, 1x shielded RJ45 CAT5e (female/female), 1x 120 V AC outlet, 1x 3 A circuit breaker
- Good shielding in the event of electromagnetic interference
Technical Specifications
Product properties
| Housing type | Panel mounting base |
| Application | Standard |
| Type | B24 |
| Protective cover | yes |
Electrical properties
| Rated voltage (III/3) | max. 125 V AC () |
| Rated voltage (III/3) | max. 32 V DC (Circuit breaker) |
| Rated voltage (III/3) | max. 250 V AC (Circuit breaker) |
| Rated voltage (III/3) | max. 150 V (RJ45) |
| Rated current | max. 1.5 A DC (RJ45) |
| Rated current | 15 A () |
| Rated current | 3 A (Circuit breaker) |
Connection data
| Tightening torque | 1.5 ... 2 Nm |
Dimensions
| Width | 53 mm |
| Height | 30.5 mm |
| Length | 140.5 mm |
Installation dimensions
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 113 mm |
Material specifications
| Seal material | NBR, conductive |
| Seal material | NBR, conductive |
| Housing Material | Die-cast aluminum, salt water resistant |
| Housing surface material | uncoated |
| Material, protective cover | PA |
| Locking latch material | Polyamide |
| Impact strength | IK08 |
Connector
| Contact insert design | with 1x RJ45 Cat 5E shield Ethernet Socket/socket, snap-in slot locking |
| Contact insert design | with 1x 120 V AC outlet Terminal 6.35 mm (0.250 in.) |
| Contact insert design | with 1x 3 A circuit breaker Terminal 4.8 mm. AC outlet requires slip-on sleeves: Item No. 3240539 or 3240536, Breaker requires slip-on sleeves: Item No. 3240541, 3240547, or 3240538. |
Ambient conditions
| Degree of Protection | IP66 |
| Degree of Protection | IP67 |
| Impact strength | IK08 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C (Housing) |
Accessories
C-SCFFI 2,5/6,3X0,8 - Slip-on sleeve, fully isolated, blue, 1.5 ... 2.5 mm2, for plug 6.3 x 0.8 mm
C-SCFFI 6/6,3X0,8 - Slip-on sleeve, fully insulated, yellow, 4 ... 6 mm2, for 6.3 x 0.8 mm plugs
C-SCFFI 1,5/6,3X0,8 - Slip-on sleeve, fully isolated, red, 0.5 ... 1.5 mm2, for plug 6.3 x 0.8 mm
C-SCFFI 2,5/4,8X0,5 - Slip-on sleeve, fully isolated, blue, 1.5 ... 2.5 mm2, for plug 4.8 x 0.5 mm
C-SCFFI 1,5/4,8X0,5 - Slip-on sleeve, fully isolated, red, 0.5 ... 1.5 mm2, for plug 4.8 x 0.5 mm
Why Proax for Phoenix Contact 1415759?
Proax is an authorized distributor of Phoenix Contact 1415759 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
