Name: 1415244
Brand: Phoenix Contact
SKU: PHX1415244

Official Distributor

By Phoenix Contact

SKU

MPN

MD-IN-0-SZP-S

Weight

0.955 kg

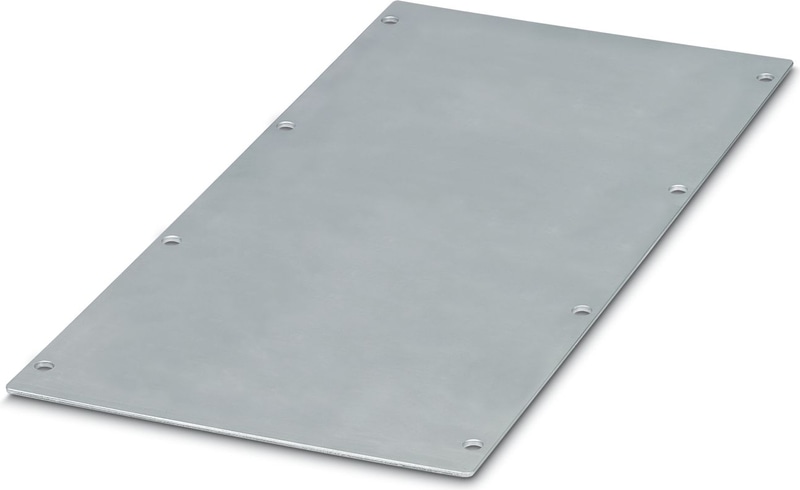

MD-IN-0-SZP-S - Base plate

Base plate, with seal, without opening, including mounting screws

Notes

General

incl. mounting screws

Product properties

Seal present

yes

Connection data

Tightening torque

1 ... 1.2 Nm

Dimensions

Width	168 mm
Height	2 mm
Length	338 mm

Material specifications

Material	Stainless steel 1.4301/AISI 304
Seal material	NBR

Ambient conditions

Degree of Protection	IP54
Ambient Temperature (Operation)	-40 °C ... 100 °C

Mounting

Assembly instructions	Diameter of fixing hole for self-tapping screw: 4.5 mm ... 4.7 mm, mounting screws (M5x12): 1.0 Nm ... 1.2 Nm tightening torque, SW4 Allen key
Assembly instructions	Make sure the seal is fitted correctly (must not be be squeezed out at the sides)
