1415243
Official DistributorSKU
PHX1415243
MPN
MD-INB24-4-SZP-S
Weight
0.719 kg
Series MD-INB24

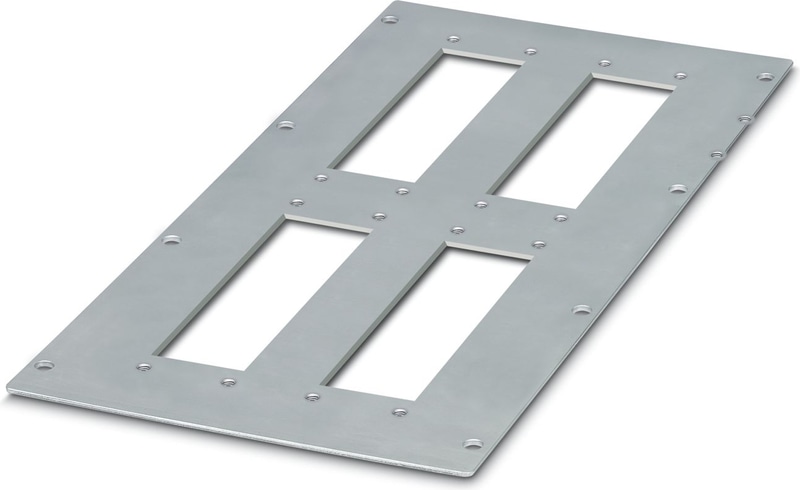

MD-INB24-4-SZP-S - Module plate
Module plate, with seal, for CES B24 sealing frames, with 4 openings, including mounting screws
Technical Specifications
Notes
| General | incl. mounting screws |
Product properties
| Seal present | yes |
Connection data
| Tightening torque | 1 ... 1.2 Nm |
Dimensions
| Width | 168 mm |
| Height | 2 mm |
| Length | 338 mm |
Material specifications
| Material | Stainless steel 1.4301/AISI 304 |
| Seal material | NBR |
Ambient conditions
| Degree of Protection | IP54 |
| Ambient Temperature (Operation) | -40 °C ... 100 °C |
Mounting
| Assembly instructions | Diameter of fixing hole for self-tapping screw: 4.5 mm ... 4.7 mm, mounting screws (M5x12): 1.0 Nm ... 1.2 Nm tightening torque, SW4 Allen key |
| Assembly instructions | Make sure the seal is fitted correctly (must not be be squeezed out at the sides) |
Why Proax for Phoenix Contact 1415243?
Proax is an authorized distributor of Phoenix Contact 1415243 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
