8801230
Official DistributorBy Rittal
SKU
RIT8801230
Weight
4.3 kg
This product is Not Cancellable/Not Returnable

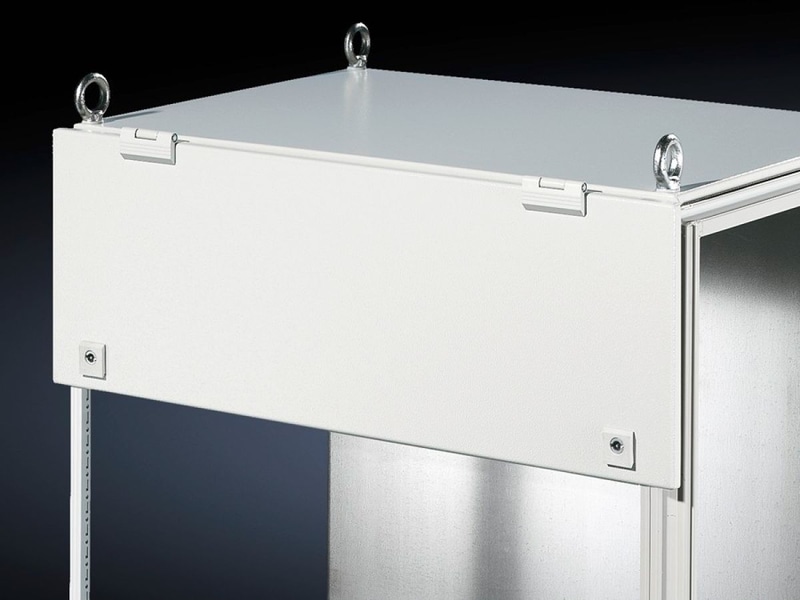

TS Trim panel, hinged at the top, WH: 600x300
Supply includes
Hinges, cam locks with double-bit insert and assembly components.
Technical Specifications
Dimensions
| Width | 600 mm |
| Height | 300 mm |
| Material | Carbon steel, 2.0 mm |
| Surface finish | Textured paint |
| Color | RAL 7035 |
| Note | Not in conjunction with top mounting module for TS |
| Weight/packaging unit | 4.3 kg |
| Customs tariff number | 94039910 |
| EAN | 4028177319202 |
| ETIM 7.0 | EC002617 |
| ECLASS 8.0 | 27189260 |
Why Proax for Rittal 8801230?
Proax is an authorized distributor of Rittal 8801230 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
