Official DistributorSKU
MPN
HC-STA-B16-HHWD-1STM32-EL-AL
Weight
0.261 kg
Series HC-STA-B

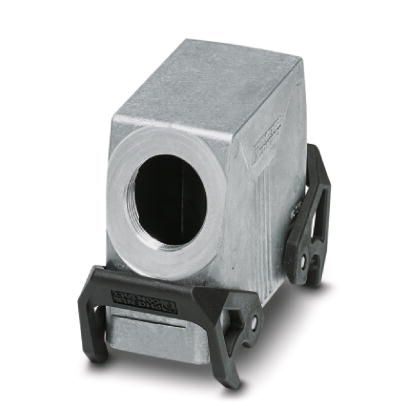

Housing - HC-STA-B16-HHWD-1STM32-EL-AL
Sleeve housing B16, with double locking latch, material: Die-cast aluminum, salt water resistant, cable outlets: 1, lateral, 1x M32, height: 76 mm, cable gland: none, Standard
- good shielding in the event of electromagnetic interference
Technical Specifications
Dimensions
| Height | 76 mm |
| Width | 44 mm |
| Length | 93.5 mm |
Ambient conditions
| Degree of Protection | IP66 |
| Degree of Protection | IP67 |
| Degree of protection (NEMA) | 4 (UL 50e) |
| Degree of protection (NEMA) | 4X (UL 50e) |
| Degree of protection (NEMA) | 12 (UL 50e) |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
General
| Note | For contact inserts HC-B16, BB32, D40, DD72, HS6, HV6, M, K |
| Size | B16 |
| Housing type | Sleeve housing |
| Color | gray aluminum |
| Locking Type | with double locking latch |
| No. of cable outlets | 1 |
| Cable outlet | lateral |
| Screw connection | none |
| Type of the screw connection | 1x M32 |
| Housing Material | Die-cast aluminum, salt water resistant |
| Housing surface material | uncoated |
| Material lock | PA |
| Flammability rating according to UL 94 | V0 (Interlock) |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 years |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Accessories
1411166 - Cable gland, material for screw connection: Brass, nickel-plated, application: Standard, external cable diameter 15 mm ... 21 mm, shielding: no, connecting thread: M32 x 1.5, color: silver, with O-ring
1411191 - Cable gland, material for screw connection: Brass, nickel-plated, application: EMC, external cable diameter 14 mm ... 21 mm, shielding: yes, connecting thread: M32 x 1.5, color: silver, with O-ring
1414629 - Protective cover B16, for double locking latch, protective cover material: PA, height: 18.5 mm, seal: no
Why Proax for Phoenix Contact 1412703?
Proax is an authorized distributor of Phoenix Contact 1412703 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
