1411103
Official DistributorSKU
PHX1411103
MPN
G-EDSWU-M63-L66L-STES-S
Weight
0.022 kg

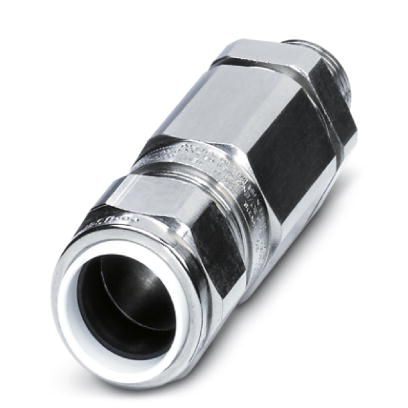

G-EDSWU-M63-L66L-STES-S - Cable gland
Cable gland, material for screw connection: Stainless steel 316L, application: Ex, external cable diameter 54.6 mm ... 65.9 mm, shielding: yes, connecting thread: M63 x 1.5, color: silver
- If space is restricted at the fixing location of the screw connection, the armor can be attached at a location where there is more room to move. Final assembly can then be easily completed in the restricted space conditions at the fixing location of the screw connection.
- Armor connected via PE cone
- Weatherproof sealing material
Documents
Technical Specifications
Notes
| Notes on the product family | with seal for conductor outer and inner jacket |
Mounting
| Assembly note | With integrated grounding cones, sealed to IP66/IP67/IP68 thanks to the use of the A-SEW-63-P-W flat gasket (item 1411288) |
| Assembly note | If space is restricted at the fixing location of the screw connection, the armor can be attached at a location where there is more room to move. Final assembly can then be easily completed in the restricted space conditions at the fixing location of the screw connection. |
Product properties
| Application | Ex |
| No. of conductors | 1 |
| Manufacturer | CMP |
| Manufacturer Designation | T3CDS1RA, thread size 63 |
| Shielded | yes |
| Execution of the strain relief | D |
Ex data
| Cable types that can be used | Depending on the material of the housing wall (SWA/AWA/PWA/STA/ASA/CY/SY/SWB) |
| Suited for EX-applications | yes |
Characteristics
| Category of shock impact | 8 |
| Cable diameter without cable sheath | 47.2 mm ... 56 mm |
| Cable diameter without armor | 47.2 mm ... 56 mm (Filler beneath the armor) |
| Design, Strain relief | D |
Dimensions
| Length | 107 mm |
| Length of the connecting thread | 15 mm |
| Wrench size, union nut | 80 mm |
| Wrench size, support | 80 mm |
| Hexagon angular dimension | 88 mm |
| Thread type connection side | M63 x 1.5 |
| Thread pitch | 1.5 mm |
| Armor thickness | 2 mm ... 2.5 mm (Stepped cone side (SWA/...)) |
| Armor thickness | 0 mm ... 1.5 mm (Grooved cone side (STA/...)) |
Material specifications
| Color | Steel/stainless steel color |
| Seal material cable seal | EPDM |
| Material for screw connection | Stainless steel 316L |
Cable/line
| External Cable Diameter | 54.6 mm ... 65.9 mm |
Ambient conditions
| Degree of Protection | IP66 (using the corresponding A-SEW-...P-W flat gasket) |
| Degree of Protection | IP67 (using the corresponding A-SEW-...P-W flat gasket) |
| Degree of Protection | IP68 (using the corresponding A-SEW-...P-W flat gasket) |
| Ambient Temperature (Operation) | -60 °C ... 130 °C (static) |
Approvals
| ATEX | Sira 13ATEX1073X |
| ATEX | Sira 13ATEX4079X |
| ATEX | Ex II 2G, II 1D, Ex d IIC Gb, Ex e IIC Gb, Ex ta IIIC Da, Ex II 3G Ex nR IIC Gc, Ex I M2, Ex d I Mb, Ex e I Mb |
| IECEx | IECEx SIR 13.0028X |
| IECEx | Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da, Ex d I Mb, Ex e I Mb |
EN Ex
| Standards/specifications | EN 60079-0, -1, -7, -15, -31 |
IEC Ex
| Standards/specifications | IEC 60079-0, -1, -7, -15, -31 |
Cable glands
| Standards/specifications | EN 50262 |
| Standards/specifications | IEC 62444 |
IEC Ex
| Standards/specifications | IEC 61241-0:2004 |
