Name: 1409921
Brand: Phoenix Contact
SKU: PHX1409921
Price: 59.8700 CAD
Availability: BackOrder

Official Distributor

By Phoenix Contact

SKU

MPN

HC-BBB 40-ESTC

Weight

0.061 kg

Series HC-BBB

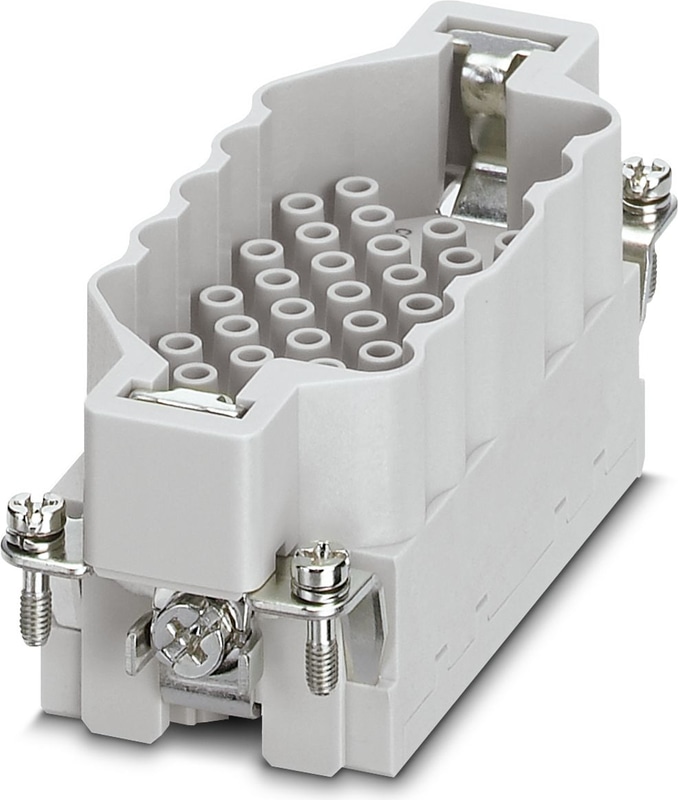

HC-BBB 40-ESTC - Contact insert

Contact insert, number of positions: 40+PE, size: B16, number of connections per position: 1, Pin, Crimp connection, 500 V, 16 A, 0.5 mm2 ... 4 mm2

Notes

General	For HEAVYCON ADVANCE and HEAVYCON housing of B16 type, crimp contacts CK 2,5-ED (crimp contacts not included in the scope of supply).
General	Connectors may be operated only when there is no load/voltage.

Mounting

Assembly instructions

To ensure correct use, installation in housing with IP54 protection or better is required

Product properties

Series	HC-BBB
Type	B16
Type	B32
Number of Positions	40
Connection profile	40+PE
Contact numbering	1 - 40
Number of connections per position	1
Contact material type	turned

Insulation characteristics

Overvoltage category	III
Degree of pollution	3

Dimensions

Width	34 mm
Height	34.4 mm
Length	84.5 mm
Drill hole distance, horizontal	77.5 mm
Drill hole distance, vertical	27 mm

Mechanical characteristics

Minimum housing height	76 mm
Contact diameter	2.5 mm

Connection technology

Connection technology	Crimp connection
Number of connections per position	1
Connection in acc. with standard	IEC / EN

Conductor connection

Conductor Cross Section	0.5 mm² ... 4 mm²
Connection cross section AWG	20 ... 12
Tightening torque	0.8 Nm ... 1.2 Nm (PE connection)
Tightening torque	0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing)
Stripping length of the individual wire	7.5 mm

Electrical properties

Rated voltage (III/3)	500 V
Rated surge voltage	6 kV
Rated current	16 A

Mechanical data

Insertion/withdrawal cycles

≥ 500

Material specifications

Flammability rating according to UL 94	V0
Contact Material	Copper alloy
Contact surface material	Ag (alternatively Au)
Contact carrier material	PC
Standards/regulations	PC: Fire protection in rail vehicles - requirement set R22 acc. to DIN EN 45545-2 (Risk level HL1 - HL2)
Standards/regulations	PC: Fire protection in rail vehicles - requirement set R23 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)

Ambient conditions

Ambient Temperature (Operation)

-40 °C ... 125 °C (including heating up of contacts)

Testing

Standards/regulations	PC: Fire protection in rail vehicles - requirement set R22 acc. to DIN EN 45545-2 (Risk level HL1 - HL2)
Standards/regulations	PC: Fire protection in rail vehicles - requirement set R23 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)

1604997
HC-B-PES - PE screw, for contact inserts HC-B / HC-BB / HC-DD / HC-D40 / HC-D64
1644326
PE multiplier - HC-B-3PE
1676860
Coding socket for coding up to 16 connectors
1772722
HC-CB - Coding pin, prevents mismating of up to six connectors with an identical number of positions
1685327
Strain relief clamp - HC-B-ZG
1685330
HC-B-ZS - Strain relief clamps contact inserts of series: B-, BB-, D 40, D 64, DD and HV, lateral cable exit
1676857
HC-CST - Coding peg for coding up to 16 connectors
1586141
HC-B 24-ANDOCK - Docking frame for racks, for contact inserts of B24 type, with four M5 flat headed screws, rack balance x/y axis ± 1.5 mm
1072067
Contact removal tool - UNIFOX RT-CK 2.5
1212113
CRIMPFOX-TC 4 - Crimping pliers, for CK 1,6-ED..., CK 2,5-ED..., CK 4,0-ED... turned contacts, 4 marked die stations, unlockable pressure lock, lateral entry, incl. positioning tool
1089092
UNIFOX MT-CK 1.6/2.5 - Assembly tool, for CK 1.6... crimp contacts for small conductor cross sections
1663572
CK2,5-ED-0,50ST AG - Crimp contact, contact diameter: 2.5 mm, turned, Pin, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 0.5 mm2 ... 0.5 mm2, AWG 20
1663585
CK2,5-ED-0,75ST AG - Crimp contact, contact diameter: 2.5 mm, turned, Pin, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 0.75 mm2 ... 0.75 mm2, AWG 18
1663598
CK2,5-ED-1,00ST AG - Crimp contact, contact diameter: 2.5 mm, turned, Pin, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 0.75 mm2 ... 1 mm2, AWG 18
1663608
CK2,5-ED-1,50ST AG - Crimp contact, contact diameter: 2.5 mm, turned, Pin, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 1.5 mm2 ... 1.5 mm2, AWG 16
1663611
CK2,5-ED-2,50ST AG - Crimp contact, contact diameter: 2.5 mm, turned, Pin, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 2.5 mm2 ... 2.5 mm2, AWG 14
1663624
CK2,5-ED-3,00ST AG - Crimp contact, contact diameter: 2.5 mm, turned, Pin, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 3 mm2 ... 3 mm2, AWG 12
1663637
CK2,5-ED-4,00ST AG - Crimp contact, contact diameter: 2.5 mm, turned, Pin, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 4 mm2 ... 4 mm2, AWG 12
1674804
CK2,5-ED-0,50ST AU - Crimp contact, contact diameter: 2.5 mm, turned, Pin, contact material: Copper alloy, contact surface: gold-plated, connection cross section: 0.5 mm2 ... 0.5 mm2, AWG 20
1674781
CK2,5-ED-1,00ST AU - Crimp contact, contact diameter: 2.5 mm, turned, Pin, contact material: Copper alloy, contact surface: gold-plated, connection cross section: 0.75 mm2 ... 1 mm2, AWG 18
1674778
CK2,5-ED-1,50ST AU - Crimp contact, contact diameter: 2.5 mm, turned, Pin, contact material: Copper alloy, contact surface: gold-plated, connection cross section: 1.5 mm2 ... 1.5 mm2, AWG 16
1674817
CK2,5-ED-2,50ST AU - Crimp contact, contact diameter: 2.5 mm, turned, Pin, contact material: Copper alloy, contact surface: gold-plated, connection cross section: 2.5 mm2 ... 2.5 mm2, AWG 14
1674794
CK2,5-ED-4,00ST AU - Crimp contact, contact diameter: 2.5 mm, turned, Pin, contact material: Copper alloy, contact surface: gold-plated, connection cross section: 4 mm2 ... 4 mm2, AWG 12
