8612960
Official DistributorBy Rittal
SKU
RIT8612960
Weight
7.77 kg

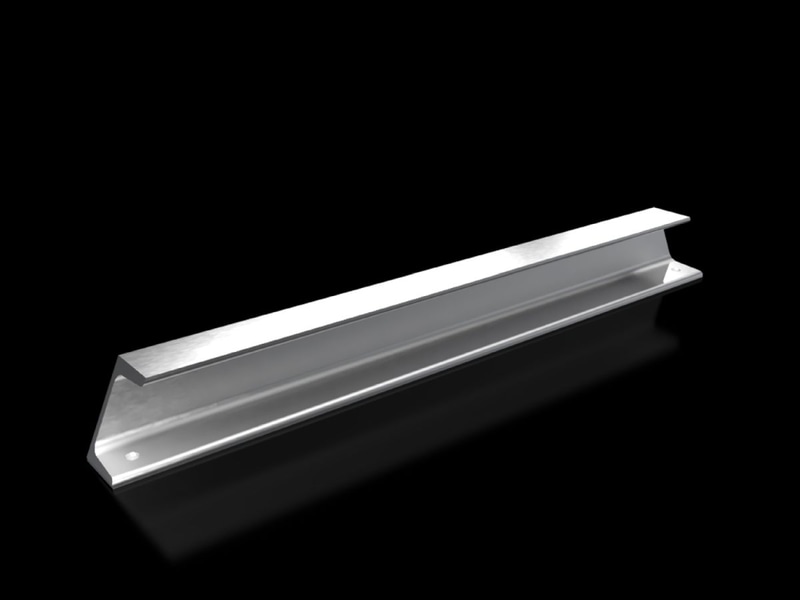

TS Support rail 65 x 42 mm, for TS, SE, for W: 600 mm
Supply includes
Assembly components
Support Rail 65 x 42 mm for VX, TS, SE
For heavy assemblies up to 5000 N per support rail. Permissible static load of 10000 N per enclosure.
Technical Specifications
Suitable for
| Enclosure Type | VX |
| Width | = 600 mm |
| Material | Steel |
| Surface finish | Zinc-plated |
| Installation options | On the inner mounting level, on VX enclosure profile |
| Packaging unit | 2 pc(s). |
| Weight/packaging unit | 7.77 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177522862 |
| ETIM 7.0 | EC001285 |
| ECLASS 8.0 | 27189234 |
Why Proax for Rittal 8612960?
Proax is an authorized distributor of Rittal 8612960 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
