1061958
Official DistributorSKU
PHX1061958
MPN
ID-S-S 915
Weight
0.204 kg

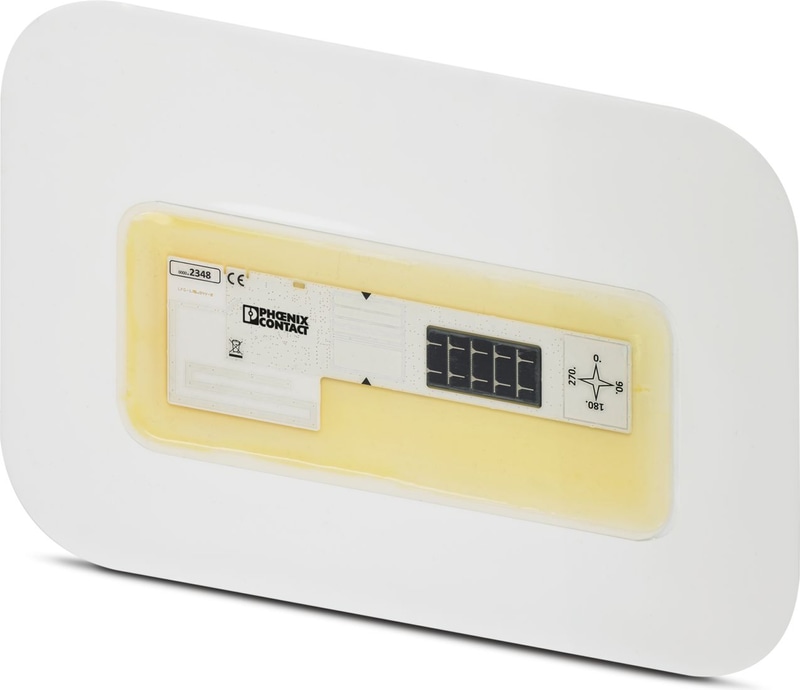

ID-S-S 915 - Sensor
Wireless ice and temperature sensor for wind turbine generators, self-adhesive, for mounting on rotor blades, tower or nacelle, communication with the ID-S-RT 915 wireless receiver via 915 MHz frequency band
- Temperature measurement via integrated switching circuit
- Ice detection through impedance measurement
- Wireless collection and transmission of measurement data
- Simple mounting
- Flexible design
- Autonomous operation via integrated solar cell
Technical Specifications
Wireless
| Transmission power | 1 mW (minimum) |
| Transmission power | 10 mW (maximum) |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 60 °C (Derating at <-25°C) |
| Ambient temperature (storage/transport) | typ. 0 °C ... 25 °C (Ambient light > 1000 lux) |
| Ambient temperature (storage/transport) | max. 0 °C ... 40 °C (Ambient light > 1000 lux) |
| Permissible humidity (operation) | 0 % ... 100 % |
Electromagnetic HF field
| Frequency Range | 902 MHz ... 928 MHz (typical: 913 MHz) |
Accessories
