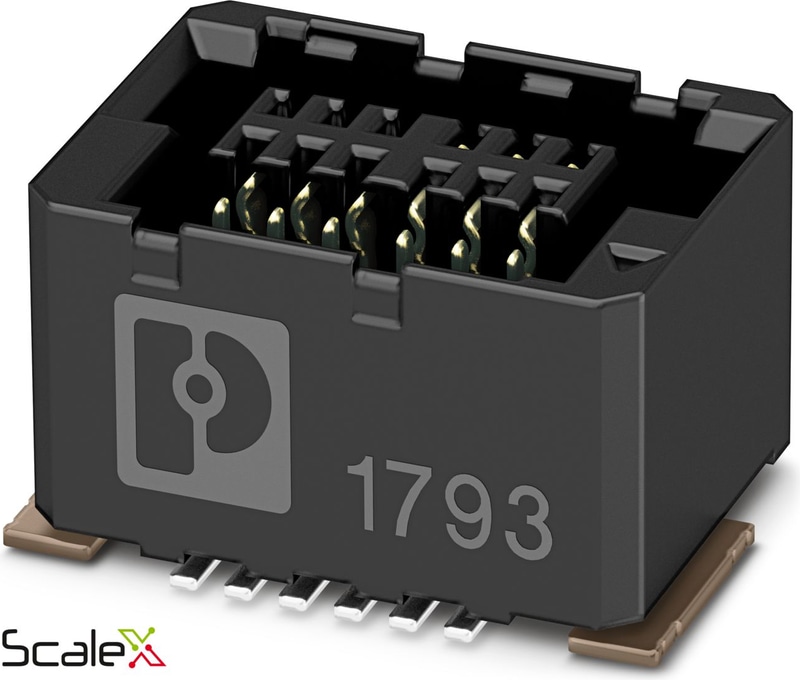

The figure shows a 12-pos. version with 12 contacts
1061662
Official DistributorSKU
PHX1061662
MPN
FP 0,8/ 32-FV 4,85
Weight
0.002 kg
FP 0,8/ 32-FV 4,85 - SMD female connectors
SMD female connector, nominal current: 1.7 A, Test voltage: 500 V AC, number of positions: 32, pitch: 0.8 mm, color: black, contact surface: Gold, contact connection type: Socket, mounting: SMD soldering
- Gold-plated contacts ensure transfer quality remains stable over the long term
- Reliable mechanical and electrical connections, thanks to the double-sided ScaleX contact system
- Robustness: ScaleX technology for high tolerance compensation and protection of contacts
- Flexible device design: various numbers of positions, designs, and stack heights with high wipe lengths
Technical Specifications
Product properties
| Product family | FP 0,8/...-FV 4,85 |
| Number of Positions | 32 |
| Pitch | 0.8 mm |
| Number of rows | 2 |
| Number of potentials | 32 |
| Pin layout | Linear pad geometry |
Electrical properties
| Nominal current IN | 1.7 A IEC 60512-5-2:2002-02 (at 20°C 80-pos.) |
| Degree of pollution | 3 |
| Contact resistance | 20 mΩ |
| Test voltage | 500 V AC IEC 60512-4-1:2003 |
Mounting
| Mounting Type | SMD soldering |
| Pin layout | Linear pad geometry |
Processing notes
| Process | Reflow soldering |
| Moisture Sensitive Level | MSL 1 |
| Classification temperature Tc | 260 °C |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact Material | Cu alloy |
| Surface characteristics | Selective coating |
| Metal surface contact area (top layer) | Gold (Au) |
| Metal surface contact area (middle layer) | Nickel (Ni) |
| Metal surface soldering area (top layer) | Tin (Sn) |
| Metal surface soldering area (middle layer) | Nickel (Ni) |
Material data - housing
| Color (Housing) | black (9005) |
| Insulating material | LCP |
| Insulating material group | IIIb |
| CTI according to IEC 60112 | 150 |
| Flammability rating according to UL 94 | V0 |
Notes
| Notes on operation | The permissible voltage during operation depends on the application, taking into consideration the air clearances and creepage distances within the scope of insulation requirements in accordance with IEC 60664-1. |
| Details for soldering processes | The items are suitable for assembly on both sides and for overhead soldering. |
Dimensions
| Pitch | 0.8 mm |
| Width [w] | 17.58 mm |
| Height [h] | 5.45 mm |
| Length [l] | 7.3 mm |
| Installed height | 4.85 mm |
Application
| Contact cover | 0.8 mm |
| Center offset | ± 0.7 mm in longitudinal and transverse direction |
| Stack height | 6 mm Tolerance: +1,5 mm (in combination with Range of articles:FP 0,8/...-MV 1,15) |
| Stack height | 7.5 mm Tolerance: +1,5 mm (in combination with Range of articles:FP 0,8/...-MV 2,65) |
| Stack height | 12 mm Tolerance: +1,5 mm (in combination with Range of articles:FP 0,8/...-MV 7,15) |
| Stack height | 13.5 mm Tolerance: +1,5 mm (in combination with Range of articles:FP 0,8/...-MV 8,65) |
| Wipe length | 1.5 mm |
| Angular tolerance | ± 5 ° in longitudinal and transverse direction (when plugging in) |
| Angular tolerance | ± 5 ° in longitudinal and transverse direction (when plugged in) |
| Axial offset in X direction (longitudinal) | ± 0.3 mm (Tolerance compensation when plugged in) |
| Axial offset in Y direction (transversal) | ± 0.3 mm (Tolerance compensation when plugged in) |
PCB design
| Pad geometry | 0.5 x 3 mm |
Thermal test | Test group C
| Specification | IEC 60512-5-2:2002-02 |
| Tested number of positions | 80 |
Insulation resistance
| Specification | IEC 60512-3-1:2002-02 |
| Insulation resistance, neighboring positions | ≥ 5 GΩ |
Air clearances and creepage distances |
| Insulating material group | IIIb |
| Minimum value for clearance and creepage distance | 0.25 mm |
Vibration test
| Specification | IEC 60068-2-6:2007-12 |
| Frequency | 10 - 2000 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 1.5 mm (10 Hz ... 60.1 Hz) |
| Acceleration | 200 m/s² (58 Hz ... 2000 Hz) |
| Test duration per axis | 2.5 h |
Durability test
| Specification | IEC 60512-9-1:2010-03 (following) |
| Contact resistance R1 | 20 mΩ |
| Contact resistance R2 | 20 mΩ |
| Insertion/withdrawal cycles | 500 |
Shocks
| Specification | IEC 60068-2-27:2008-02 |
| Pulse shape | Semi-sinusoidal |
| Acceleration | 490 m/s² |
| Shock duration | 11 ms |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
Ambient conditions
| Ambient Temperature (Operation) | -55 °C ... 125 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
Packaging specifications
| Type of packaging | 32 mm wide tape |
| [W] tape width | 32 mm |
| [W2] coil overall dimension | 38.4 mm |
| [A] coil diameter | 330 mm |
| Outer packaging type | Transparent-Bag |
| ESD level | (D) electrostatically conductive |
| Specification | DIN EN 61340-5-1 (VDE 0300-5-1): 2008-07 |
