1054544
Official DistributorSKU
PHX1054544
MPN
VS-FP-SD-GB-RJ456A-BUBU
Weight
0.101 kg

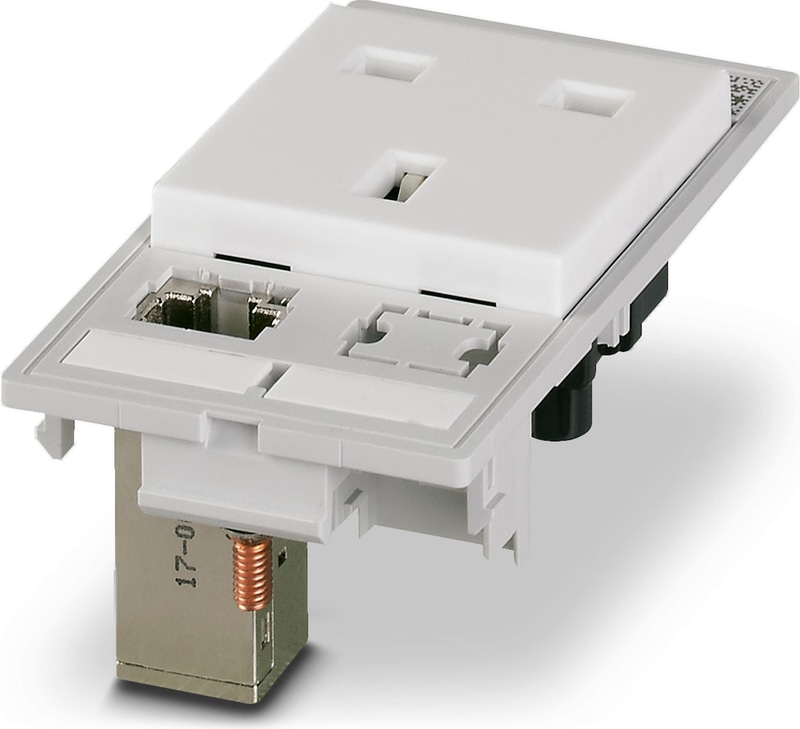

VS-FP-SD-GB-RJ456A-BUBU - Front plate
Grounding contact socket, plastic, for England, including RJ45 gender changer (female/female, shielded), CAT6A
Technical Specifications
Product properties
| Number of Positions | 8 |
| Country ID | Great Britain |
Electrical properties
| Rated voltage (III/3) | 250 V (Socket) |
| Rated voltage (III/3) | max. 30 V AC (RJ45) |
| Rated voltage (III/3) | max. 42.4 V DC (RJ45) |
| Rated current | 13 A (Socket) |
| Nominal current IN | max. 175 mA (RJ45) |
| Transmission Speed | 10 Gbps |
Connection data
| Connection Method | Screw connection |
Dimensions
| Width | 50.7 mm |
| Height | 43 mm |
| Length | 87.5 mm |
Material specifications
| Material | Zinc die-cast, nickel-plated |
| Material Housing | PBT |
| Material | PC |
Connector
| Contact insert design | with 1x RJ45 Socket/socket, Cat 6, classEA (ISO/IEC 11801:2002), (EN 50173-1) |
Mechanical data
| Insertion/withdrawal cycles | >= 750 (RJ45) |
Ambient conditions
| Degree of Protection | IP20 (Front) |
| Ambient Temperature (Operation) | -5 °C ... 50 °C |
Mounting
| Assembly instructions | Shroud connection: M4 threaded pin, tightening torque: 0.8 Nm ... 1.0 Nm |
Accessories
