Official DistributorIPD WD 3P2,5 M20 GY - Panel feed-through

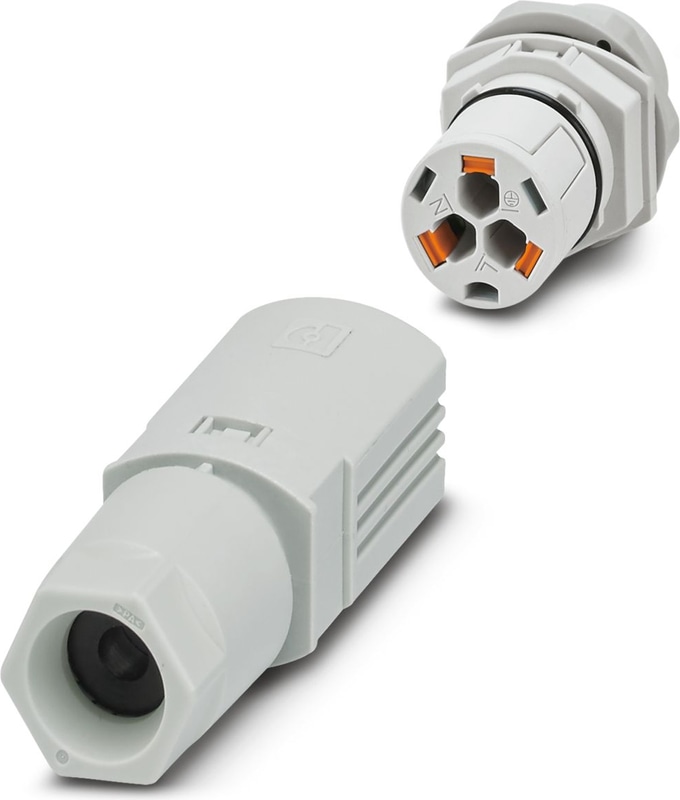

Panel feed-through, Direct connection, product family: IPD, connection method: Push-in connection/ Push-in connection, number of positions: 2+PE, M20, 0.5 mm2 ... 2.5 mm2, 600 V, 20 A, PA, light grey, external cable diameter: 6 mm ... 9 mm and 8 mm ... 13 mm
- Convenient: quick and easy assembly without special tools
IPD Installation System
The IPD Installation System from Phoenix Contact offers a complete range of components—including panel feed-throughs, connectors, connecting cables, Y distributors, and more—designed for simple, safe, and flexible power distribution.
With Push-in Technology and a fast-locking system, Phoenix Contact’s IPD connectors and distributors ensure tool-free, reliable installation even in the most challenging environments. Whether wiring panels, connecting devices, or expanding power lines, the IPD system makes every connection quick and secure.
Effortless power distribution: Components plug directly, reducing installation complexity.
Time-saving wiring: Push-Lock connections simplify field installation.
Durable and reliable: Entire system rated IP66, IP68, and IP69K, ideal for harsh environments.
Safe, tool-free locking: Ensures secure connections in difficult-to-access areas.
Fast commissioning: Preassembled cable assemblies speed up project completion.
The IPD Installation System by Phoenix Contact is your go-to solution for safe, efficient, and versatile electrical installations, enabling professional-grade performance with minimal effort.
Product properties
| Product family | IPD |
| Number of Positions | 3 |
| Connection profile | 2+PE |
| Position marking | L, N, PE |
| Type | Direct connection |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Connection technology
| Connection method On the device side | Push-in connection |
| Connection method On the field side | Push-in connection |
| Frequency of connections between conductors of the same cross section | max. 10 |
Conductor connection
| Conductor cross section flexibel | 0.5 mm² ... 2.5 mm² |
| Conductor cross section solid | 0.5 mm² ... 2.5 mm² |
| Connection cross section AWG | 20 ... 14 |
Dimensions
| Width | 28.6 mm |
| Length | 90.8 mm |
Electrical properties
| Rated surge voltage (III/3) | 6 kV |
| Rated current | 20 A |
| Rated voltage (III/3) | 600 V |
| Nominal voltage UN | 690 V AC |
| Nominal voltage UN | 690 V DC |
| Nominal current IN | 20 A (observe derating) |
Mechanical data
| Insertion/withdrawal cycles | 10 |
Material specifications
| Color | light grey (RAL 7035) |
| Material Housing | PA |
| Material Contact | Cu |
| Material Contact surface | Ni/Sn |
| Flammability rating according to UL 94 | V0 |
Cable/line
| External Cable Diameter | 6 mm ... 9 mm |
| External Cable Diameter | 8 mm ... 13 mm |
| Stripping length of the individual wire | 10 mm |
| Position marking | L, N, PE |
Mounting
| Mounting Type | Front mounting M20 |
Ambient conditions
| Degree of Protection | IP66 |
| Degree of Protection | IP68 (2 m / 24 h) |
| Degree of Protection | IP69K |
| Ambient Temperature (Operation) | -40 °C ... 100 °C (T = 55 °C) |
| Temperature when conductor connected | -5 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 100 °C |
| Resistance to UV radiation | yes |
