Name: 1046940
Brand: Phoenix Contact
SKU: PHX1046940

Official Distributor

By Phoenix Contact

SKU

MPN

H3X:C5FF:2U3FF

Weight

0.022 kg

Series H

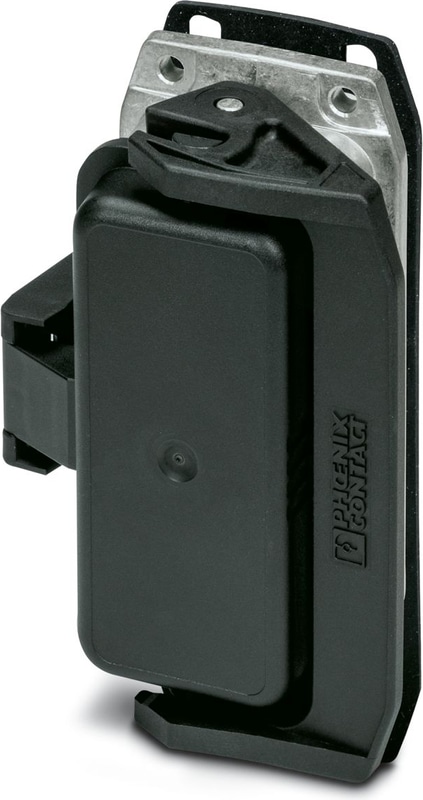

H3X:C5FF:2U3FF - Housing

HEAVYPORT B16 panel mounting base, with single locking latch, with plastic protective cover, with stainless steel front plate connections, 1x RJ45 CAT5e (female/female), 2x USB Type A/A (female/female)

Good shielding in the event of electromagnetic interference

Product properties

Application	Standard
Type	B16
Protective cover	yes

Connection data

Tightening torque

1.5 ... 2 Nm

Dimensions

Width	53 mm
Height	30.5 mm
Length	114 mm

Installation dimensions

Width of the assembly cutout	35 mm
Length of the assembly cutout	86 mm

Material specifications

Seal material	NBR, conductive
Seal material	NBR, conductive
Housing Material	Die-cast aluminum, salt water resistant
Housing surface material	uncoated
Material, protective cover	PA
Locking latch material	Polyamide
Impact strength	IK08

Ambient conditions

Degree of Protection	IP66
Degree of Protection	IP67
Impact strength	IK08
Ambient Temperature (Operation)	-40 °C ... 125 °C (Housing)
