Name: 8610605
Brand: Rittal
SKU: RIT8610605
Price: 1147.2400 CAD
Availability: InStock

Official Distributor

By Rittal

SKU

Weight

15 kg

Series Glazed Door for TS, TS IT, SE

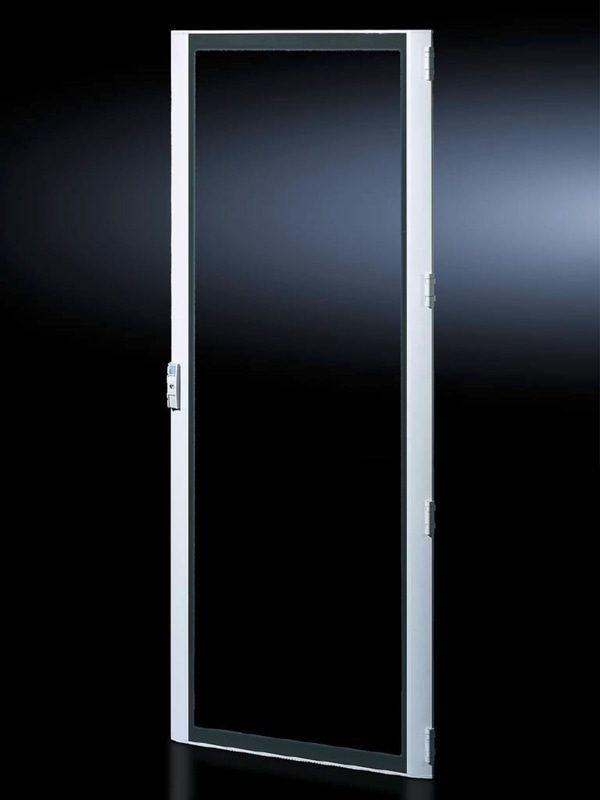

TS Glazed door, for TS, TS IT, SE, for WH: 600x2000 mm

Supply includes

Glazed door frame with safety glass
Locking rod with double-bit insert
180° hinges (4 pcs)

Glazed Door for TS, TS IT, SE

Instead of a carbon steel door or rear panel.

Color

Frame	RAL 7035
Corner pieces	RAL 7035
Viewing window (printed mask on the inside)	RAL 9005

Material

Frame	Extruded aluminum section
Corner pieces	Die-cast zinc
Viewing window	Single-pane safety glass, 3 mm

Suitable for

Enclosure Type	TS
Width	= 600 mm
Height	= 2,000 mm

Viewing window

Viewing window width	460 mm
Viewing window height	1,840 mm

Surface finish	Powder-coated
Viewing window height	1,840 mm
Mounting tip	When mounting instead of the rear panel, the lock components are required
Protection category IP to IEC 60 529	IP 55
Weight/packaging unit	15 kg
EAN	4028177693845
ETIM 7.0	EC000747
ECLASS 8.0	27182204
