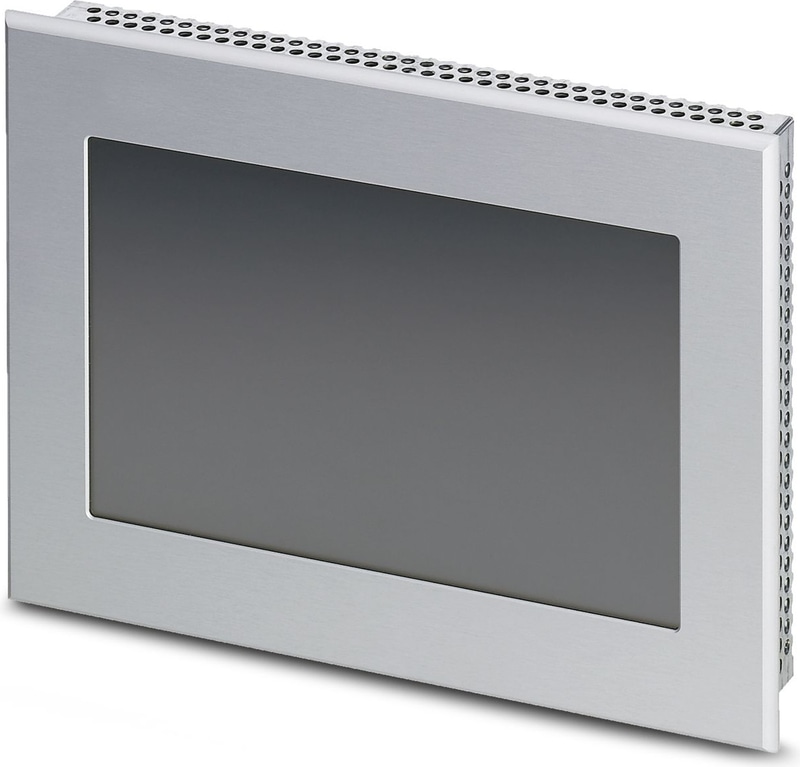

Similar figure
Official DistributorSKU
MPN
TP 3070W/WT-65 SER
Weight
1.8 kg
Series TP
TP 3070W/WT-65 SER - Touch panel
Rugged touch panel with 17.8 cm / 7" TFT display (analog-resistive (GFG)), 800 x 480 pixels (WVGA), degree of protection: IP65 (front), extended temperature range, 1x COM (RS-232), 1x COM (RS-422/485), Arm® Cortex®-A8, 1000 MHz, Windows® Embedded Compact 7, and Visu+ application software.
Technical Specifications
Computer data
| Operating system | Windows® Embedded Compact 7 |
| RAM | 1 MB SRAM |
| RAM | 512 MB LPDDR SDRAM |
| Data storage system | NAND-Flash, 256 MB |
| Slots | 1x SD |
| Extras | Integrated acoustic signal (buzzer) |
Display
| Display type | 17.8 cm / 7"-TFT |
| Screen resolution | 800 x 480 Pixel(s) (WVGA) |
| Touch technology | Analog resistive (GFG) |
| Display lighting type | LED |
| Brightness | 400 cd/m², typical (adjustable) |
| MTBF | 50000 h |
| Color spectrum | 16.7 million colors |
| Reading angle left | 70.00 ° |
| Reading angle right | 70.00 ° |
| Reading angle top | 60.00 ° |
| Reading angle bottom | 60.00 ° |
Interfaces
| Interfaces | 2x USB Host 2.0 |
| Interfaces | 1x COM (RS-232) |
| Interfaces | 1x COM (RS-422/485) |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
System properties
| User software | Visu+ |
System requirements
| Runtime system | Visu+ Runtime |
Electrical properties
| Service life of battery | 5 years (typical) |
Supply
| Typical current consumption | 0.4 A |
Real-time clock
| Realtime Clock | Yes |
Mounting
| Mounting Type | Bolt fixing |
Material specifications
| Material front plate | Aluminum (natural anodized) |
| Housing Material | Steel sheet, zinc-plated |
Ambient conditions
| Degree of Protection | IP65 (front), IP20 (back) |
| Degree of Protection | NEMA 4X |
| Ambient Temperature (Operation) | -32 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | 3000 m |
| Permissible humidity (operation) | 5 % ... 95 % (Front) |
| Permissible humidity (operation) | 20 % ... 85 % (On the rear) |
| Shock | 15g, according to IEC 60068-2-27 |
| Vibration (Operation) | 1g, according to EN 60068-2-6 |
External dimensions
| Width / Height / Depth | 208 mm / 148 mm / 5 mm (Dimensions of the front plate) |
Installation dimensions
| Width / Height / Installation depth | 200 mm / 140 mm / 75 mm (Mounting cutout, depth with bus if bus system present in the device) |
Why Proax for Phoenix Contact 1034352?
Proax is an authorized distributor of Phoenix Contact 1034352 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
