ZLS913
Official DistributorBy ABB
SKU
ABBZLS913
MPN
2CCA183470R0001
Weight
0.03 kg

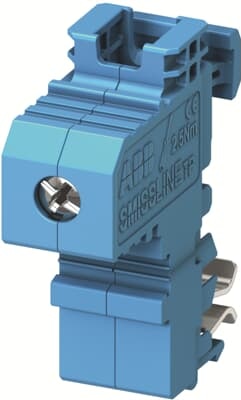

N terminal for additional socket SMISSLINE TP, for external busbars 16 mm2 up to 35 mm2 wire
with ferrule, max. 1 wire
Technical Specifications
Technical
| Model Number | Flat |
Electrical
| Rated Operational Voltage | 690 V AC |
| Rated Operational Voltage | 1000 V DC |
| Rated Current (In) | 100 A |
Design
| Surface Finishing | Tinned |
Dimensions
| Product Net Width | 35 mm |
| Product Net Height | 46 mm |
| Product Net Depth / Length | 47 mm |
| Product Net Weight | 30 g |
| Dimension Diagram | 9AKK107492A6192 |
Engineering
| EPLAN Data | 9AAF617140_EPLAN |
Installation
| Instructions and Manuals | 9AKK107680A2315 |
