S202MT-K0.5
Official DistributorBy ABB
SKU
ABBS202MTK0:5
MPN
2CDS272006R0157
Weight
0.25 kg

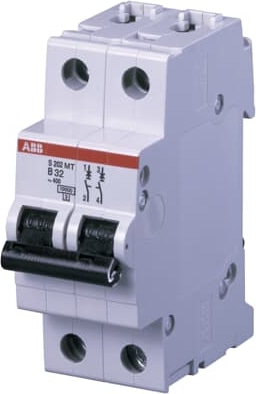

S200MT miniature circuit breakers are designed especially for traction and railway applications. Acc. NF F 16-101/102 the product range S200MT is classified with Exigence 3, enabling the use in all parts of the vehicle. They are current limiting and have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200MT comply with IEC/EN 60898-1 and IEC/EN 609 47-2. All system pro M compact accessories can be used.
Including the bottom-fitting auxiliary contact S2C-Hxx providing the possibility of 50% space saving and the creation of group signals.
Technical Specifications
Technical
| Standards | IEC/EN 60947-2 |
| Tripping characteristic | K |
| Rated Operational Voltage | acc. to IEC 60898-1 400 V AC |
| Rated Operational Voltage | acc. to IEC 60898-1 440 V |
| Rated Operational Voltage | acc. to IEC 60947-2 400 V AC |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 440 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Impulse Withstand Voltage (Uimp) | at 2000 m 5 kV |
| Rated Impulse Withstand Voltage (Uimp) | at Sea Level 6.2 kV |
| Input Voltage Type | AC |
| Rated Current (In) | 0.5 A |
| Rated Short-Circuit Capacity | (230 V AC) 10 kA |
| Rated Short-Circuit Capacity | (400 V AC) 10 kA |
| Rated Short-Circuit Capacity | (230 V) 10 kA |
| Rated Short-Circuit Capacity | (400 V) 10 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V AC) 15 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 15 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V) 15 kA |
| Rated Conditional Short-Circuit Current (Inc) | (230 V) 15 kA |
| Rated Conditional Short-Circuit Current (Inc) | (400 V) 15 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (230 V AC) 10 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (400 V AC) 11.3 kA |
| Rated Frequency (f) | 50 / 60 Hz |
| Power Loss | 3.2 W |
| Power Loss | at Rated Operating Conditions per Pole 1.6 W |
| Power supply connection | Arbitrary |
| Energy Limiting Class | 3 |
| Mechanical Endurance | 20000 cycle |
| Number of Protected Poles | 2 |
| Number of Poles | 2 |
| Overvoltage category | III |
| Tightening torque | 2.8 N·m |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Actuator Marking | I / O |
| Actuator Material | Insulation Group II, Black, Sealable |
| Housing Material | Insulation Group I, RAL 7035 |
| Options Provided | Suitable for traction application |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Mounting Position | any |
| Recommended Screw Driver | Pozidriv 2 |
| Accessories Available | Yes |
| Connecting Capacity | Busbar 10 / 10 mm² |
| Connecting Capacity | Flexible with Ferrule 0.75 ... 16 mm² |
| Connecting Capacity | Flexible 0.75 ... 16 mm² |
| Connecting Capacity | Flexible 0.75 ... 25 mm² |
| Connecting Capacity | Rigid 0.75 ... 25 mm² |
| Connecting Capacity | Rigid 0.75 ... 35 mm² |
| Connecting Capacity | Stranded 0.75 ... 25 mm² |
| Installation Size | acc. to DIN 43880 1 |
| Terminal Type | Screw Terminals |
Dimensions
| Width in Number of Modular Spacings | 2 |
| Product Net Width | 35 mm |
| Product Net Height | 88 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 0.25 kg |
| Pole Net Weight | 0.115 kg |
| Built-In Depth (t2) | 69 mm |
Installation
| Instructions and Manuals | 2CDS207104P0002 |
