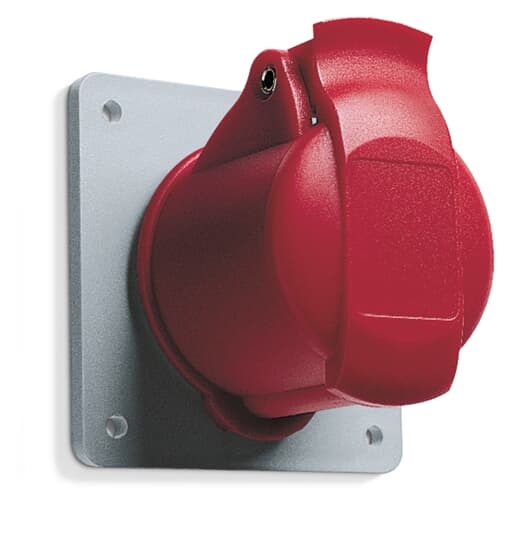

ABB430RU12SP
Official DistributorBy ABB
SKU
ABBABB430RU12SP
Weight
0.231 kg
IEC Receptacle for 30A and 125/250V AC 3P4W, UL/CSA approved and CE compliant
Technical Specifications
Technical
| Standards | UL 1682, 1686 / CSA C22.2 No. 182.1-13 |
| Function | Outlet |
| Suitable for Product Class | IEC Industrial Plugs and Sockets |
| Rated Voltage (Ur) | 125 … 250 V |
| Rated Current (In) | 30 A |
| Frequency (f) | 50 Hz, 60 Hz |
| Rated Frequency (f) | 50...60 Hz |
| Mounting Holes | 60-61x60-61 |
| Number of Poles | 4 |
| Plug Angle | Straight |
| Tightening torque | WireClamp1.2 N·m |
| Connection Type | Screw |
| Clock Position Of Grounding Contact | 12 hour |
| Housing Material | Plastic (PA) |
| Material | Plastic |
| Additional Information | 3P+E |
| RAL Number | RAL 7001 - Silver Grey |
| Color | Orange |
| Cable Cross-Section | 2.5 ... 10 mm² |
Environmental
| Ambient Temperature | -25 ... 40 °C |
| Degree of Protection | IP44 |
| RoHS Status | Following EU Directive 2011/65/EU |
Technical UL/CSA
| Tightening Torque UL/CSA | 10.6 in·lb |
Dimensions
| Product Net Width | 75 mm |
| Product Net Height | 93 mm |
| Product Net Depth / Length | 104 mm |
| Product Net Weight | 0.22 kg |
Why Proax for ABB ABB430RU12SP?
Proax is an authorized distributor of ABB ABB430RU12SP and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
