Official DistributorBy Rittal
SKU
Weight
17.8 kg

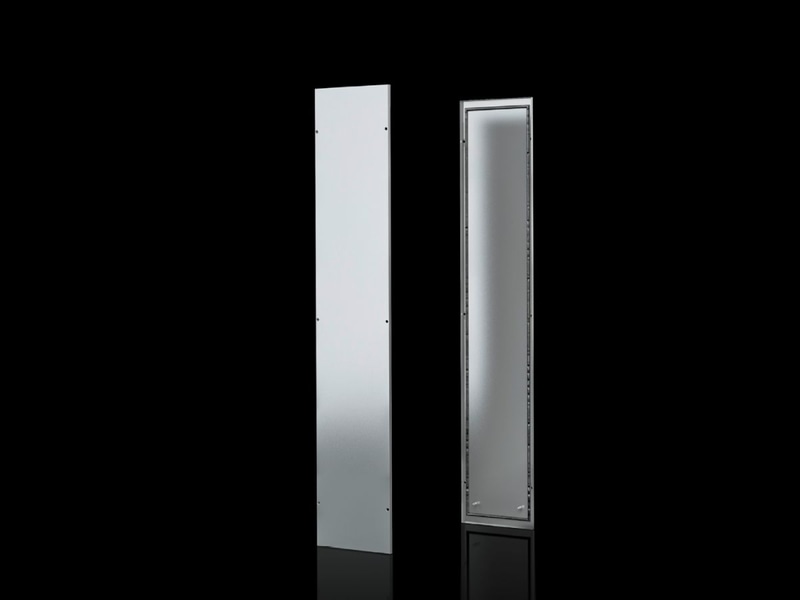

TS Side panel, screw-fastened, for TS, TS IT, for WD: 1800x400 mm, Sheet steel
Supply includes
Assembly components
Side wall, screwable, carbon steel for TS, TS IT
Side panels, screw-fastened, sheet steel, for TS.
Technical Specifications
Suitable for
| Enclosure Type | TS |
| Height | 1,800 mm |
| Depth | 400 mm |
| Benefits | Automatic potential equalization and higher EMC protection thanks to enclosure panel holders with grounding insert |
| Material | Carbon steel, 1.5 mm |
| Surface finish | Dipcoat-primed, powder-coated on the outside |
| Color | RAL 7035 |
| Note | Enclosure panel holders may optionally be fitted from the inside or outside of the enclosure. |
| Protection category IP to IEC 60 529 | IP 55 |
| Packaging unit | 2 pc(s). |
| Weight/packaging unit | 17.8 kg |
| Customs tariff number | 94039910 |
| EAN | 4028177205215 |
| ETIM 7.0 | EC002524 |
| ECLASS 8.0 | 27182101 |
Why Proax for Rittal 8184235?
Proax is an authorized distributor of Rittal 8184235 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
