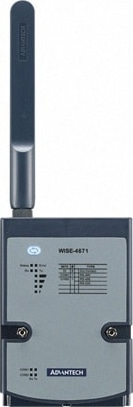

WISE-4671-UA
Official DistributorBy Advantech
SKU
ADVWISE4671UA
Cat. NB1 and Cat. M1 feature low power consumption and utilize LTE networks based on licensed spectrum bands that are optimized for connectivity to machines, assets, and sensors to unlock a range of IoT applications.
Features
- Global coverage of NB-IoT and LTE-M band w/ external detachable antenna
- 3GPP release 13 Cat. NB1/Cat. M1
- Application-ready I/O combination with optional M12 connectors, IP65
- Support MQTT, CoAP & LwM2M protocol with direct cloud service
- GNSS & solar panel rechargeable battery inside
Documents
Technical Specifications
Environment
| Ingress Protection | IP65 |
| Operating Temperature | -25~70 °C (-13~158 °F) |
| Relative Humidity | 5~95% RH (non-condensing) |
| Storage Humidity | 0~95% RH (non-condensing) |
| Storage Temperature | -40~85 °C (-40~185 °F) |
Expansion Function
| SIM card slot | Nano SIM card |
General
| Connectors | 1 x M12 4-pin code-A male, 2 x M12 8-pin code-A female |
Hardware
| Certification | CE, FCC Class A, PTCRB, AT&T, Verizon |
| LED Indicators | Status, Error, Tx, Rx, Signal Level, Battery Level |
| Power consumption | 1.4 W @ 12 VDC |
| Power Input | 10~50 VDC, 17~21 VDC Solar Panel |
I/O Interface
| USB Ports | 1 x Micro-B USB |
Mechanical
| Dimension (W x H x D) | 82 x 122 x 49 mm |
| Weight (Net) | 0.5 kg |
Power Requirements
| Input Voltage | 10~50 VDC, 17~21 VDC Solar Panel |
Wireless Communication
| Frequency band | LTE Band 2, 3, 4, 5, 8, 12, 13, 20, 28 |
| Standard(Technology) | NBIoT, LTE-M |
Why Proax for Advantech WISE-4671-UA?
Proax is the authorized distributor of Advantech WISE-4671-UA. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | WISE4671UA |
| Pack Size | 1 |
