Technical Specifications
Dimensions
| Width | 400 mm |
| Height | 495 mm |
| Depth | 300 mm |
Material
| Door | Stainless steel, all-round foamed-in PU seal |
| Housing and door | Stainless steel 1.4301 (AISI 304) |
| Mounting plate | Carbon steel, zinc-plated |
Mounting plate
| Width | 354 mm |
| Height | 475 mm |
| Model no. | WMS201612N4 |
| Surface finish | Brushed |
| Protection category NEMA | NEMA 4X |
| Material thickness - Door | 2 mm |
| Material thickness - enclosure | 1.5 mm |
| Material thickness – mounting plate | 1.5 mm |
| Lock | Lock version: Quarter turn |
| Weight/packaging unit | 17 kg |
| Customs tariff number | 7326908688 |
| UPC-Code | 84042 |
Why Proax for Rittal 8018695?
Proax is an authorized distributor of Rittal 8018695 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
Best Sellersin Wall-mounted Industrial Enclosures

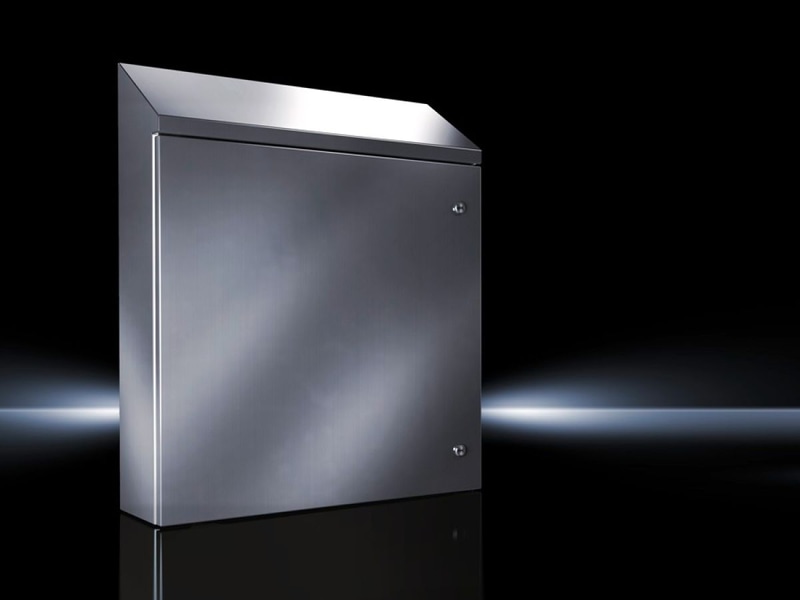

These single door wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface. Features include a stainless steel body and door, and a zinc plated mounting panel.
