7966035
Official DistributorBy Rittal
SKU
RIT7966035
Weight
4.064 kg
This product is Not Cancellable/Not Returnable

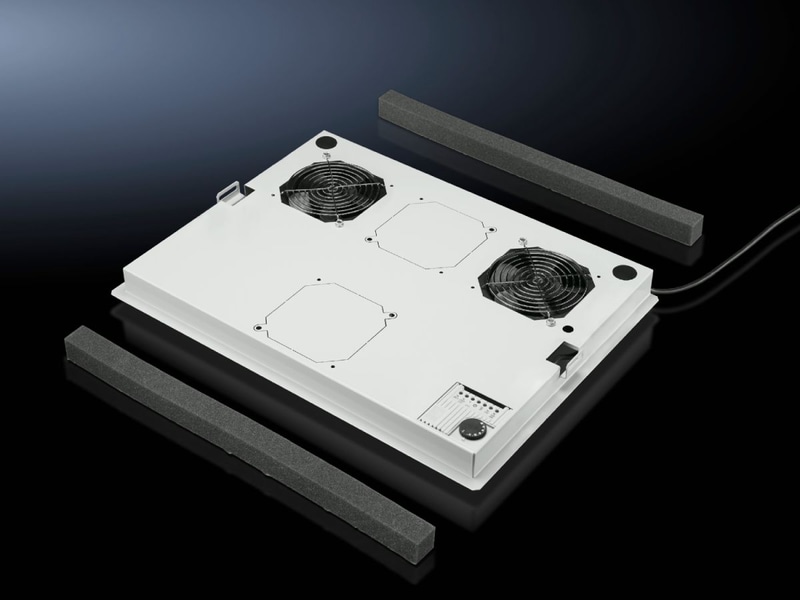

DK Fan mounting plate, WxD: 600x600 mm, 230 V, 1 ~, 50/60 Hz, For TS
Supply includes
Fan plate including 2 fans and extra cut-outs for additional fans
1 thermostat
Self-adhesive foam cable clamp strip
Thermostat and fan fully wired to connection cable (3.5 m).
Technical Specifications
Suitable for
| Width | 600 mm |
| Depth | 600 mm |
| Color | RAL 7035 |
| Air throughput per fan (unimpeded air flow) | 160/180 |
| Rated operating voltage | 230 V, 1~, 50 Hz/60 Hz |
| Air throughput of fans (unimpeded air flow) | 1514 |
| Installation options | In a solid roof plate raised with 20 or 50 mm roof spacers |
| Mounting tip | Self-adhesive foam cable clamp strip 2573.000 is required for sealing the sides and for targeted air routing when bayed |
| Note | Not suitable for crane transportation |
| Sound pressure level per fan | 37 dB(A) |
| Operating temperature range | 5 °C...55 °C |
| Weight/packaging unit | 4.064 kg |
| Customs tariff number | 84145915 |
| EAN | 4028177168923 |
| ETIM 7.0 | EC000331 |
| ECLASS 8.0 | 27189272 |
Why Proax for Rittal 7966035?
Proax is an authorized distributor of Rittal 7966035 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
