7963610
Official DistributorBy Rittal
SKU
RIT7963610
Weight
3.266 kg
This product is Not Cancellable/Not Returnable

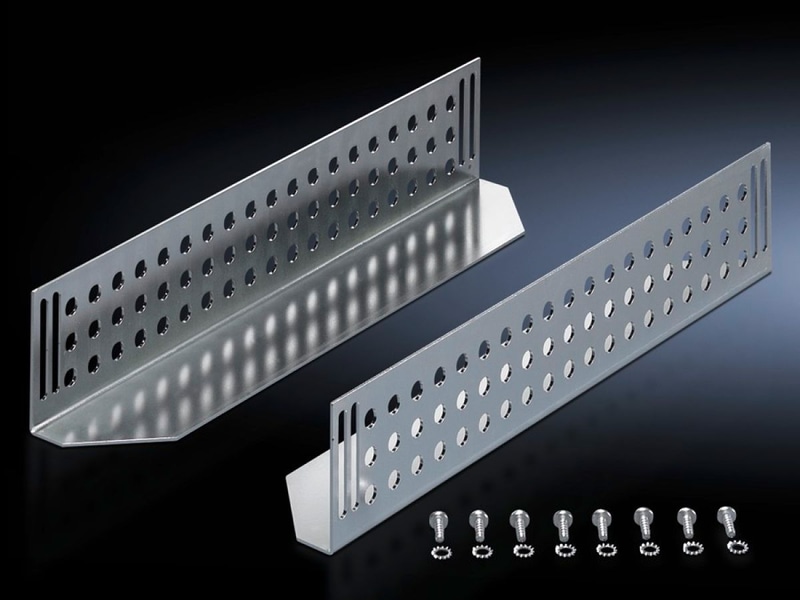

DK Slide rail, support surface WxD: 85x624 mm, 80 kg, static, distance between levels:: 695 mm, For TE
Supply includes
Assembly components
Technical Specifications
Contact surface
| Width | 85 mm |
| Depth | 624 mm |
Installation dimensions
| Installation depth for components | 482.6 mm |
| Installation width for components | 19" |
| Material | Carbon steel |
| Surface finish | Zinc-plated |
| Distance between mounting levels | 695 mm |
| Load capacity static | 800 N |
| Suitable for | Enclosure type: TE 8000 |
| Packaging unit | 2 pc(s). |
| Weight/packaging unit | 3.266 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177443969 |
| ETIM 7.0 | EC002620 |
| ECLASS 8.0 | 27189261 |
