7858100
Official DistributorBy Rittal
SKU
RIT7858100
Weight
26.5 kg
This product is Not Cancellable/Not Returnable
This item is ineligible for free shipping due to its size/weight.

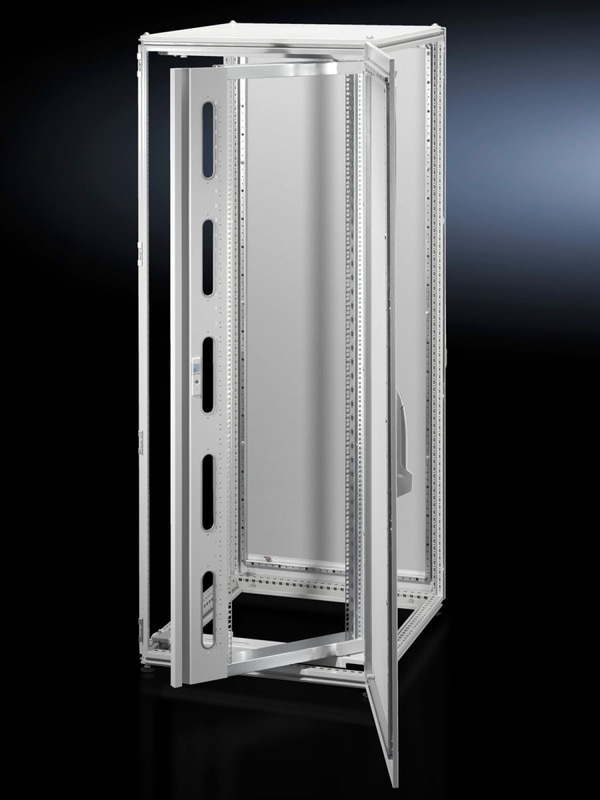

DK Swing frame, For WH: 800x2000 mm, 40 U, Heavy-duty version, 482.6 mm (19") level at the side, 130° hinge, For TS, SE
Supply includes
Locking rod system with double-bit lock insert
Material for attaching
Incl. installation kit for enclosure height 2000 mm
Pivoting frame, large, with trim panel for TS, SE, 800 mm wide enclosures
For 800 mm wide enclosures, 22 - 45 U, with trim panel to mount 482.6 mm (19") rack-mounted equipment.
Technical Specifications
Suitable for
| Enclosure Type | TS |
| Width | = 800 mm |
| Height | = 2,000 mm |
Surface finish
| Frame | Zinc-plated |
| Panel | Spray-finished |
| Version | Heavy-duty version 19” level side |
| Material | Carbon steel |
| Color | RAL 7035 |
| Opening Angle | 130° |
| Mounting tip | Depending on the installation situation TS punched sections with mounting flange, 23 x 73 mm, or TS punched sections with mounting flange, 17 x 73 mm are required |
| Note | see "Technical Details" for other expansion options |
| Load capacity, static | 350 kg |
| Height units | 40 U |
| Weight/packaging unit | 26.5 kg |
| Customs tariff number | 94039910 |
| EAN | 4028177438880 |
| ETIM 7.0 | EC002620 |
| ECLASS 8.0 | 27189261 |
Why Proax for Rittal 7858100?
Proax is an authorized distributor of Rittal 7858100 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
