7857320
Official DistributorBy Rittal
SKU
RIT7857320
Weight
8.75 kg
This product is Not Cancellable/Not Returnable

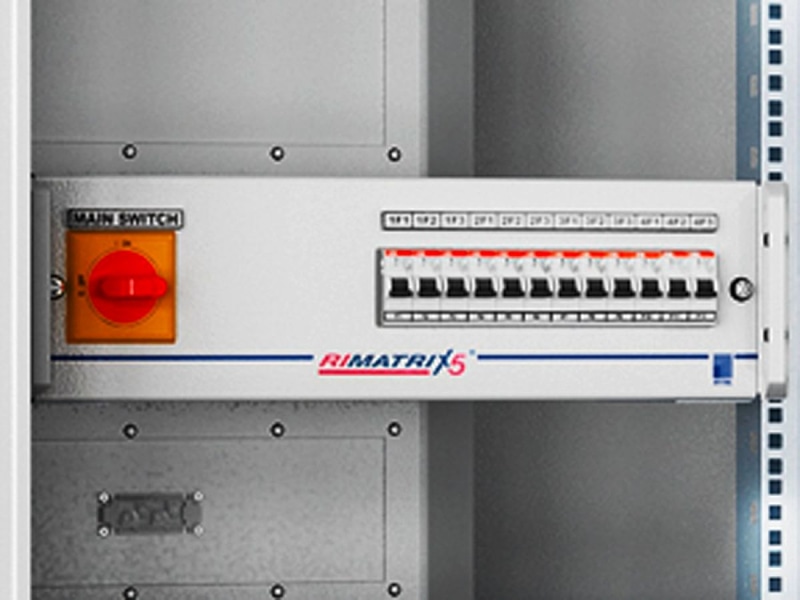

DK Power Distribution Module PDM, WHD: 482,6 (19")x3 Ux350 mm, Output: 4, 3-phase, 230 V, 16 A
Supply includes
482.6 mm (19") module, 3 U
Main switch
4 fused 3-phase outlets to the rack
3 x 230 V/16 A per outlet
Connected load 400 V/3 AC, max. 63 A
Technical Specifications
Dimensions
| Width | 482.6 mm |
| Depth | 350 mm |
| Version | 4 outlets per 10 kW |
| Options | RC circuit-breaker |
| Weight/packaging unit | 8.75 kg |
| ETIM 7.0 | EC002288 |
| ECLASS 8.0 | 27142415 |
Why Proax for Rittal 7857320?
Proax is an authorized distributor of Rittal 7857320 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
