7856090
Official DistributorBy Rittal
SKU
RIT7856090
Weight
0.355 kg

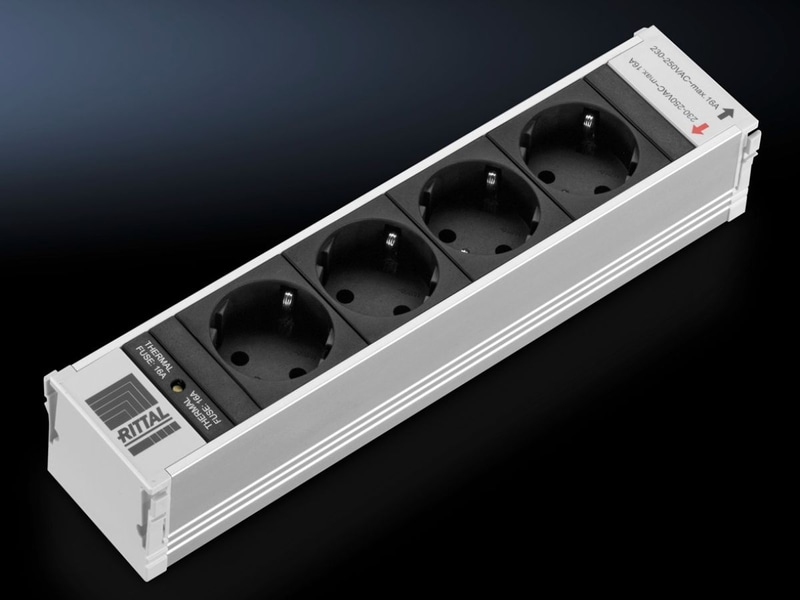

DK PSM Plus socket module, CEE 7/3 (type F), 4-way, black, non-switchable, with thermal overcurrent protection
Technical Specifications
Dimensions
| Length | 250 mm |
Material
| Profile | Aluminum, anodized |
| Socket inserts | Plastic (PA6 GF 30 V1) |
| Version | non-switchable |
| Length | 250 mm |
| Type of connection (electrical) | WAGO WINSTA MIDI |
| Phases per infeed | 1~ |
| Thermal overcurrent protection | For each socket module |
| Required module slots (quantity) | 1 |
| Outlets | 4 x D, ground contact (type F, CEE 7/4) |
| Weight/packaging unit | 0.355 kg |
| Customs tariff number | 85369001 |
| EAN | 4028177402546 |
| ETIM 7.0 | EC000330 |
| ECLASS 8.0 | 27142604 |
Why Proax for Rittal 7856090?
Proax is an authorized distributor of Rittal 7856090 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
