7706135
Official DistributorBy Rittal

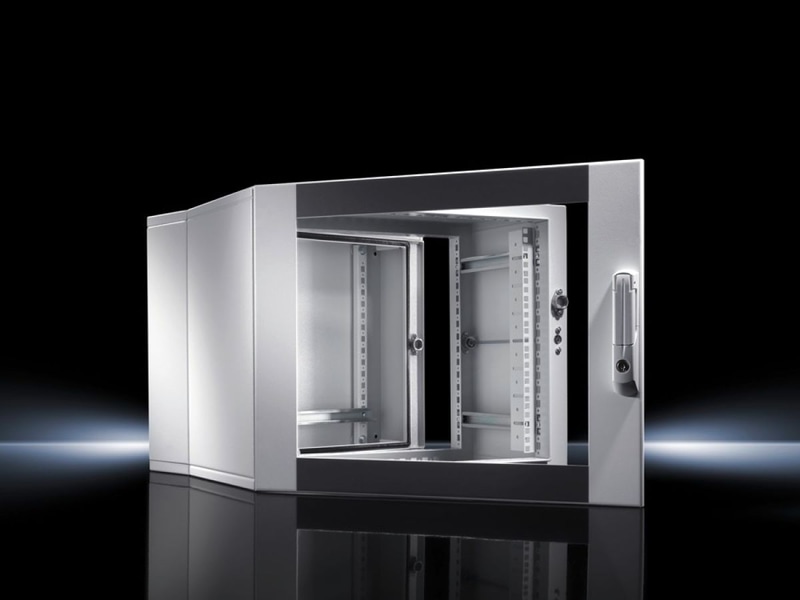

DK Wall-mounted enclosures, 3-part, WHD: 600x345x473 mm, 6 U, With punched rails, and mounting angles, depth-variable
Supply includes
Wall section closed at top and bottom with flange (gland) plate, two vertical mounting rails and horizontal C-profile rails for cable clamping.
Hinged part with 25 mm pitch pattern in the front and rear frame, two 482.6 mm (19”) profile angles at the front, fully depth adjustable
4 wall mounting brackets 10 mm
Designer viewing door
1 enclosure key double bit no. 5
Mini-comfort handle for lock inserts
Security lock 3524 E
Clearances
| Clearance width | 502 mm |
| Clearance height | 282 mm |
Color
| Wall and hinged part | RAL 7035 |
| Viewing door | RAL 7035/7015 (slate gray) |
Dimensions
| Width | 600 mm |
| Height | 345 mm |
| Depth | 473 mm |
Material
| Wall and hinged part | Carbon steel, 1.5 mm |
| Viewing window | Single-pane safety glass, 3 mm |
| Version | with punched rails and profile rails, depth-variable |
| Surface finish | Powder-coated |
| Height units | 6 U |
| Installation depth | 420 mm |
| Depth hinged part | 316 mm |
| Depth of wall section | 135 mm |
| IK code | IK08 |
| Load capacity of hinged part (static) | 300 N |
| Base material | Carbon steel |
| Protection category IP to EN 60 529 | IP 55 |
| Weight/packaging unit | 26.4 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177324176 |
| ETIM 7.0 | EC000261 |
| ECLASS 8.0 | 27142408 |
