7643000
Official DistributorBy Rittal
SKU
RIT7643000
Weight
24.63 kg
This product is Not Cancellable/Not Returnable
This item is ineligible for free shipping due to its size/weight.

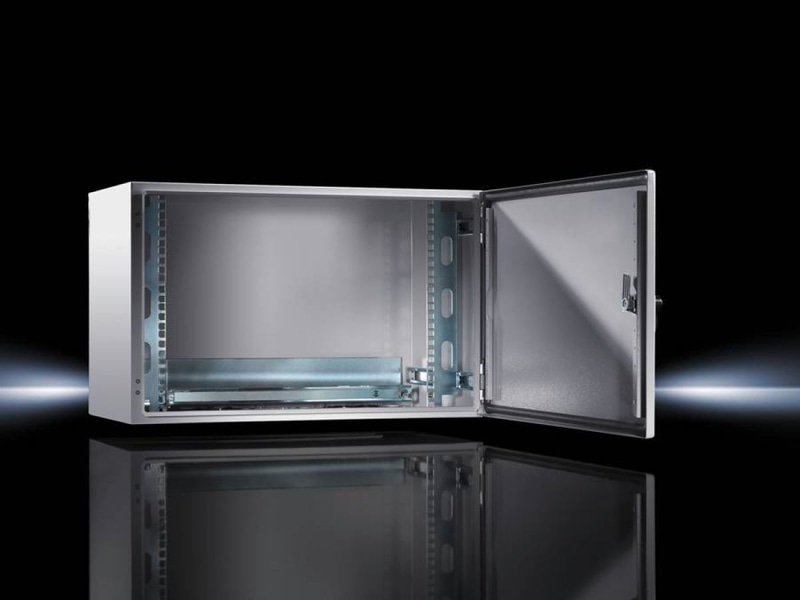

DK Wall-mounted enclosures AE, WHD:600x600x350 mm, 13 U, AE 1360
Supply includes
Housing with hinged door
Door catch on right, may be swapped to the left
Cam lock with 3 mm double-bit insert
Flange plate with brush strip for cable entry in the enclosure base
Profile rails, 482.6 mm (19"), fully depth adjustable
C rail, for cable clamping on the rear panel
Metal bracket for optional accommodation of a ground rail or a 19" socket strip
Technical Specifications
Dimensions
| Width | 600 mm |
| Height | 600 mm |
| Depth | 350 mm |
Gland plate
| Size | 5 |
| Qty. | 1 |
Surface finish
| Housing | Powder-coated |
| Profile rails | Zinc-plated |
| Material | Housing: Carbon steel |
| Color | RAL 7035 |
| Installation depth | 310 mm |
| Installation height for components | 13 U |
| Door hinge position | right, may be swapped to the left |
| No. of locks | 2 |
| Base material | Carbon steel |
| Protection category IP to EN 60 529 | Up to IP 66 (depending on the selected flange plate) |
| Weight/packaging unit | 24.63 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177147034 |
| ETIM 7.0 | EC002500 |
| ECLASS 8.0 | 27180208 |
Why Proax for Rittal 7643000?
Proax is an authorized distributor of Rittal 7643000 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
