7547000
Official DistributorBy Rittal
SKU
RIT7547000
Weight
2.809 kg

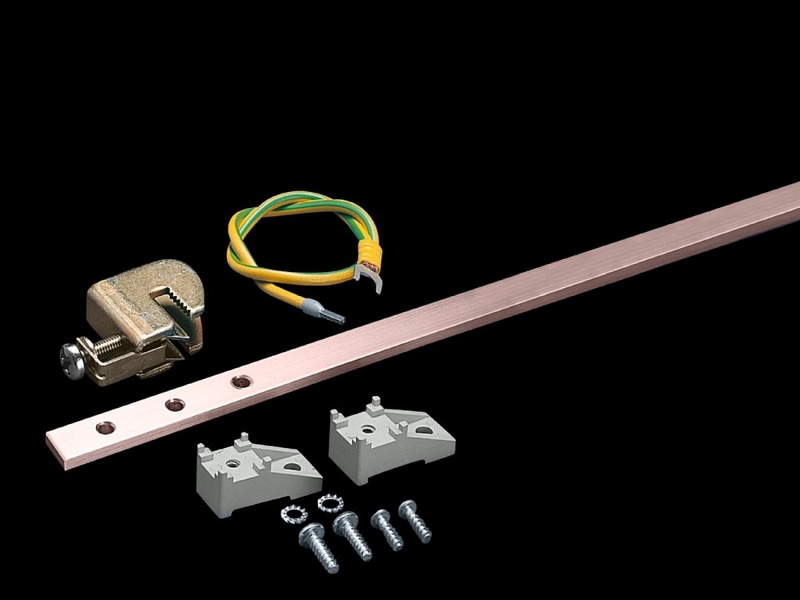

DK Earth rail, vertical, L: 1745 mm, For H: 2000 mm, For TS
Supply includes
Ground rail made from E-Cu 57 to DIN EN 12 163, DIN EN 13 601, 15 x 5 mm
null
15 grounding leads 6 mm², L = 500 mm
Assembly components
Ground rail, vertical for VX, VX IT
The supplied ground conductors facilitate star grounding of cable clamp straps on patch panels, ground terminals are fully adjustable, rail current carrying capacity approx. 200 A.
Technical Specifications
Dimensions
| Length | 1,745 mm |
Suitable for
| Enclosure Type | VX |
| Height | 2,000 mm |
| Weight/packaging unit | 2.809 kg |
| Customs tariff number | 74198090 |
| EAN | 4028177131910 |
| ETIM 7.0 | EC000329 |
| ECLASS 8.0 | 27400605 |
Why Proax for Rittal 7547000?
Proax is an authorized distributor of Rittal 7547000 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
