7507740
Official DistributorBy Rittal
SKU
RIT7507740
Weight
0.132 kg

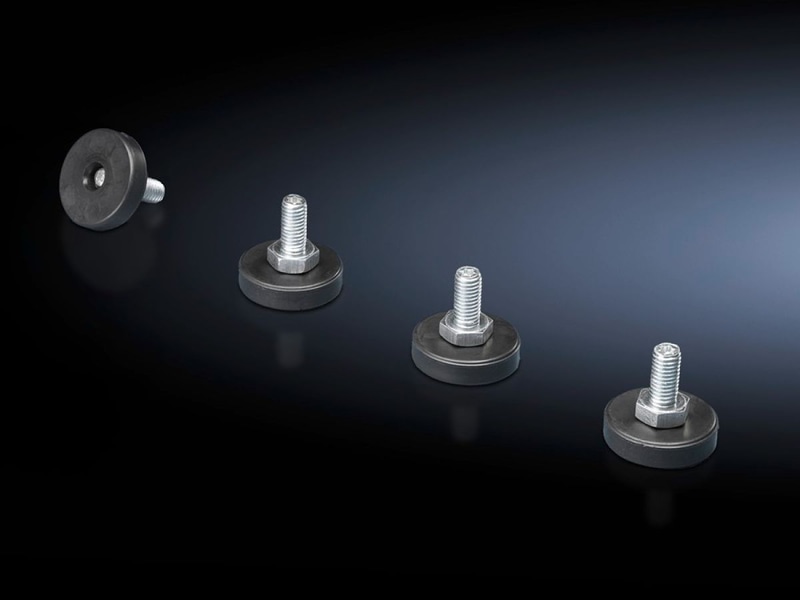

DK Levelling feet, For screw-fastening onto the enclosure base, M10x20 mm, For Flatbox,
Technical Specifications
Dimensions
| Thread | M10 |
| Thread length | 20 mm |
| Applications | Instrument Cases |
| Function principle | For screw-fastening into the enclosure base |
| Material | Base: Plastic |
| Color | Base: RAL 9005 |
| Levelling low | 30 mm |
| Adjustment tool | Hex wrench, width across flats 0.67" (17 mm) |
| Max. load capacity (static) per component | 5,500 N |
| Leveling range | 10 ‐ 20 mm |
| Packaging unit | 4 pc(s). |
| Weight/packaging unit | 0.132 kg |
| Customs tariff number | 73181900 |
| EAN | 4028177552678 |
| ETIM 7.0 | EC002620 |
| ECLASS 8.0 | 27189261 |
Why Proax for Rittal 7507740?
Proax is an authorized distributor of Rittal 7507740 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
