7507210
Official DistributorBy Rittal

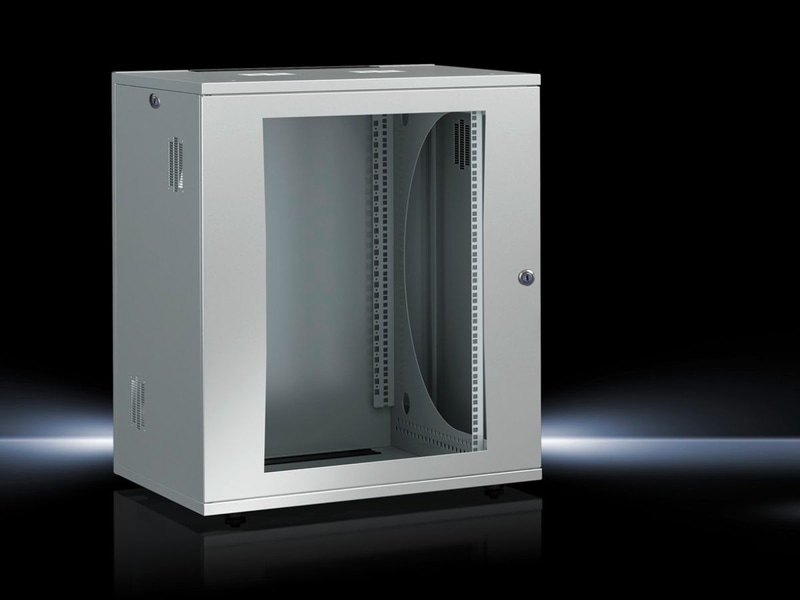

DK FlatBox, WHD: 700x892x700 mm, 18 U, with 482.6 mm (19") mounting frame
Supply includes
Flat-packed enclosure
1 wall section
2 basic supports
2 roof/base plates, with cut-outs for cable entry via brush strips
2 side panels, lockable
1 glazed door, lockable, security lock 3524 E, door catch freely selectable
Connection components for tool-free, fast assembly
Grounding kit for system-compatible grounding of all enclosure parts
19" mounting frame
FlatBox
Dimensions
| Width | 700 mm |
| Height | 892 mm |
| Depth | 700 mm |
Material
| Viewing window | Single-pane safety glass, 3 mm |
| Version | with 19" mounting frame |
| Benefits | Tool-free quick mounting |
| Surface finish | Powder-coated |
| Color | RAL 7035 |
| Installation height for components | 18 U |
| Load Capacity | max. 750 N |
| Note | Max. installation depth: Depth - 58 mm to rear panel |
| Base material | Carbon steel |
| Weight/packaging unit | 48 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177551473 |
| ETIM 7.0 | EC002500 |
| ECLASS 8.0 | 27180208 |
