7507020
Official DistributorBy Rittal

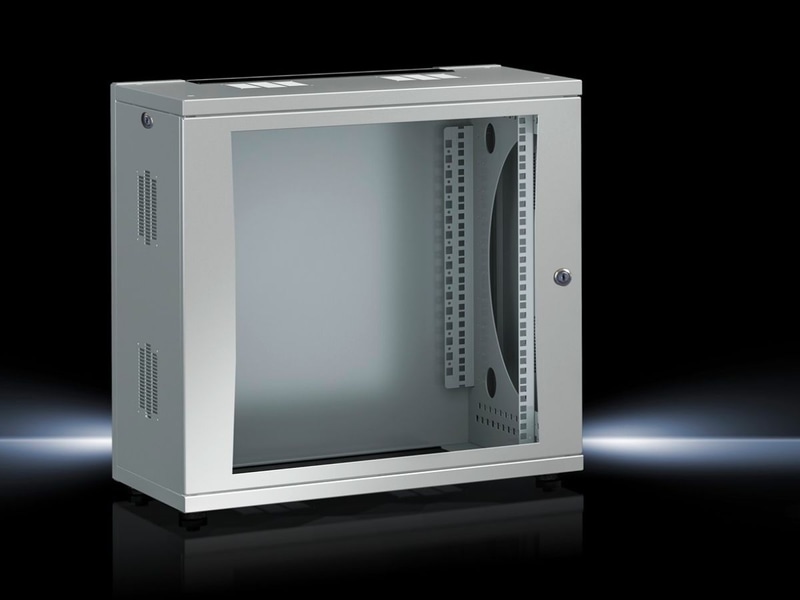

DK FlatBox, WHD: 600x625x400 mm, 12 U, with 482.6 mm (19") mounting frame
Supply includes
Flat-packed enclosure
1 wall section
2 basic supports
2 roof/base plates, with cut-outs for cable entry via brush strips
2 side panels, lockable
1 glazed door, lockable, security lock 3524 E, door catch freely selectable
Connection components for tool-free, fast assembly
Grounding kit for system-compatible grounding of all enclosure parts
19" mounting frame
FlatBox
Dimensions
| Width | 600 mm |
| Height | 625 mm |
| Depth | 400 mm |
Material
| Viewing window | Single-pane safety glass, 3 mm |
| Version | with 19" mounting frame |
| Benefits | Tool-free quick mounting |
| Surface finish | Powder-coated |
| Color | RAL 7035 |
| Installation height for components | 12 U |
| Load Capacity | max. 600 N |
| Note | Max. installation depth: Depth - 58 mm to rear panel |
| Base material | Carbon steel |
| Weight/packaging unit | 26.45 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177551411 |
| ETIM 7.0 | EC002500 |
| ECLASS 8.0 | 27180208 |
Why Proax for Rittal 7507020?
Proax is an authorized distributor of Rittal 7507020 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
| Pack Size | 1 |
